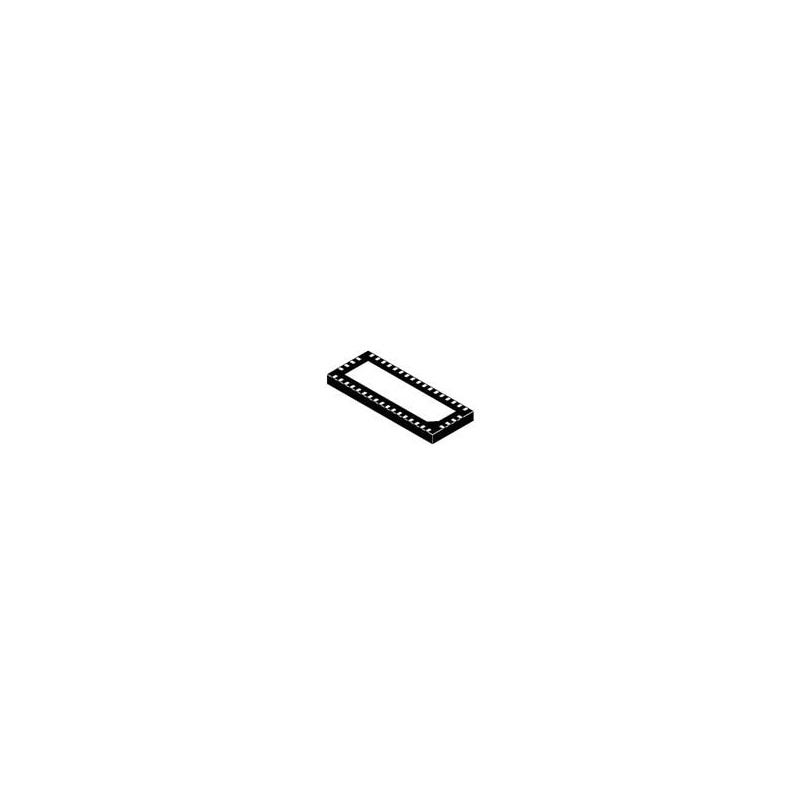

10 pcs : TS3DV642RUATQ1 - Multiplexer Switch ICs 6 Gbps 12-Channel differential 1-to-2 and 2-to-1 mux 42-WQFN -40 to 105

TS3DV642-Q1 Differential 1-to-2/2-to-1 Mux Texas Instruments TS3DV642-Q1 12-Channel Differential 1-to-2/2-to-1 Mux is an analog, high-speed bidirectional passive switch in mux or demux configurations that work for many high-speed differential interfaces with data rates up to 6Gbps. It is suited for many applications, including HDMI 1.4 / 2.0, DisplayPort 1.4, and Mipi DPHY / CPHY DSI / CSI-2. The TS3DV642-Q1 supports both differential and single-ended signaling that is virtually compatible with most standard and non-standard interfaces. The dynamic characteristics of the TS3DV642-Q1 allow high-speed switching with minimal attenuation to the signal eye diagram and with very little added jitter. The device’s silicon design is optimized for excellent frequency response at a higher frequency spectrum of the signals. The device supports differential signaling with a common-mode voltage range (CMV) of 0 to 3.6V. The device also supports 0 to 5.5V single-ended CMOS signals. The Texas Instruments TS3DV642-Q1 consumes a very low-active power of 45µA. The device also offers a power-down mode, in which all channels become Hi-Z, and the device operates with minimal power.
