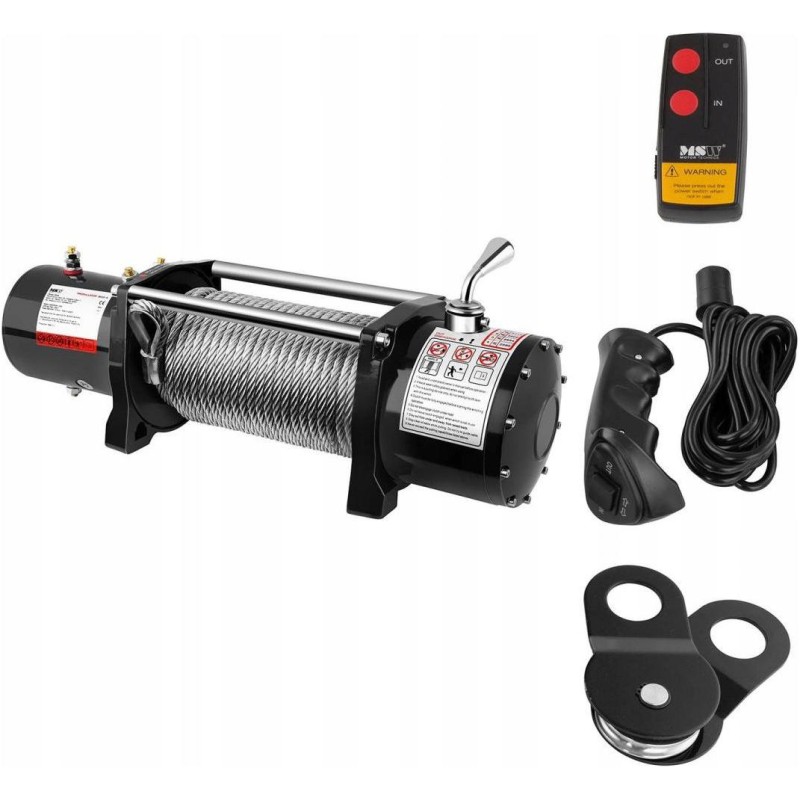

Rope winch 4310 kg, propulsor 9500 a msw

OFF-ROAD ROPE WINCH 4310KG MSW 10060663 PROPULLATOR 9500-A Features:

· Pulling force 9500lbs / 4310kg

· 28-meter torsion-resistant steel rope

· High operating speed - pull 7.8 m/min (no load)

· 3 -speed planetary gearbox with a gear ratio of 265:1

· Pulley (8t) for doubling the force or changing the direction of pull

Winch - 9500lbs - 4310kg The PROPULLATOR 9500-A winch is perfect when you need to pull a vehicle or other object in difficult terrain. The MSW device is intended for horizontal removal of e.g. cars using an efficient 5.5 HP engine and a 28 m long steel rope. The model will pass the test in mountainous places, while driving off-road. Perfectly fits all quads, ATVs, trailers, boats, snow plows, but can also be used in households to remove tree trunks, logs, etc.

MSW car winch - description

The pulling force of 9500lbs / 4310kg is due to the efficient engine, large drum and strong steel rope. The 5.5 HP / 4000 W engine is enough to easily extract the vehicle, e.g. from a ditch. The DC design is characterized by high starting torque, which is particularly appreciated in electric traction and lifting devices.

A three-stage planetary gearbox allows the user to adjust the power transmission thanks to a special gear. The reduction ratio is 265:1. The PROPULLATOR 9500-A model has forward and reverse gears and a manual clutch for quick rope unwinding. The intermittent duty cycle allows the engine to operate in intervals without reaching its highest temperature. The solution used protects against overheating.

Operational safety is guaranteed by the automatic braking system. In the absence of electricity, the pulled item will stay in one place. In addition, the MSW winch protects against overload and is protected against rain, snow and dirt, which is particularly important in off-road conditions.

2 remote controls allow for convenient operation. You can mount the wired one, for example, on the steering wheel. Wireless is used to operate the device outside the vehicle to control the extraction process. Its range is up to 30 m.

The block improves equipment efficiency. It can withstand a weight of 8 t and doubles the pulling force or allows you to change its direction. Both of these functions are useful in recovering the vehicle in difficult off-road conditions.

The strong steel rope is 28 m long and 9.5 mm in diameter. It is characterized by resistance to winding and mechanical damage (compared to synthetic ropes). The four-track guide provides less friction and protects the rope from wear. This element makes work smoother, even when changing the angle frequently. The high thrust speed is due to the efficient engine and optimal drum size. The MSW winch reaches a speed of 7.8 m/min (without load).

A solid construction translates into high quality equipment. The housing is entirely made of steel, ensuring durability and long service life. Additionally, it is characterized by an aesthetic appearance.

The PROPULLATOR 9500-A winch is an excellent tool for winching vehicles in difficult terrain conditions. It will pass the test with ATVs, quads, trailers, boats, snow plows, etc. The MSW product is equipped with an efficient 5.5 HP engine and a 28-meter steel rope. It is suitable not only for professional use and off-road racing, but also in households for removing e.g. tree trunks.

· High pulling force - 9500lbs / 4310kg

· Power transmission regulation - 3-stage planetary gear

· Comfortable operation - wired and wireless remote control

· Possibility to increase the pulling force or change direction - block block

· Solid steel rope - torsion resistant

· High operating speed – thrust 7.8 m/min

Model PROPULLATOR 9500-A

Catalog number 10060663

Article status New

Housing material Steel

Rope material Steel

Motor power 5.5 HP / 4000 W

Voltage 12V

Motor type DC series motor

Duty Cycle Intermittent

3-speed planetary gearbox

Gear ratio 265:1

Pulling force 4310kg / 9500lbs

Pulling speed 7.8 m/min

Rope length 28 m

Rope diameter 9.5 mm

Rope protection system 4-step guide

Drum diameter 64 mm

Braking system Automatic

Clutch type Slip ring

Remote control type 1 x wired 1 x wireless

Range of the wireless remote control 30 m

Block 1 x 8 t

Dimensions (LxWxH) 54.50 x 16.80 x 15.50 cm

Weight 32.60 kg

Shipping dimensions (LxWxH) 61.00 x 34.00 x 26.00 cm

Shipping weight 38.50 kg
