Off-road winch for quad 12 5m 4500lb 1 6km msw

OFF-ROAD WINCH FOR QUAD 12.5 m, 4500 lb, 1.6 HP, MSWMP10060673 The PROPULLATOR 4500-B cable winch from MSW is perfect for equipping all types of ATVs, quads or cars that operate in difficult terrain. Thanks to its high power and significant pulling force (4,500 lbs), it will allow you to efficiently pull the vehicle, e.g. from a ditch. The offered model will also work well on forest farms for removing tree stumps, etc.

The winch is equipped with an efficient brushless motor with a power of 1.6 HP / 1200 W with a planetary gearbox. It has a forward and reverse gear and a manual clutch allowing for quick manual unwinding of the rope. An automatic brake in the event of a power outage ensures that the weight is held safely.

The aluminum housing makes the winch relatively light, making it also suitable for use in small ATVs and quads.

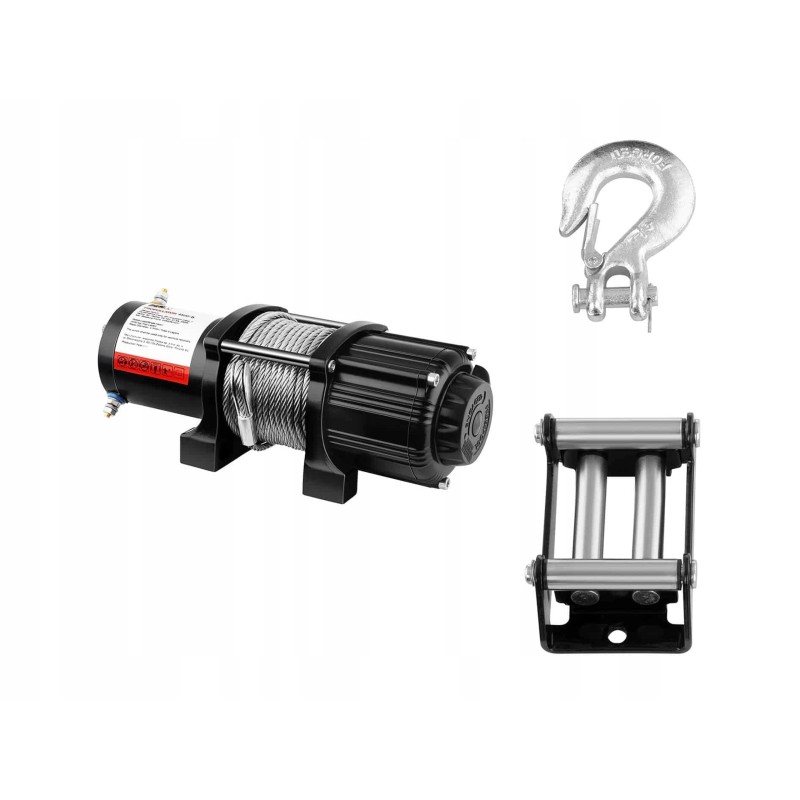

The device has a steel rope resistant to mechanical damage, with a diameter of 5.5 mm and a length of 12.5 m. The use of a four-track guide reduces friction and makes work smoother, further extending the life of the rope. The winch is supplied with accessories enabling its assembly and safe operation. Apart from the winch, the set includes:

Control box with cables

Mounting clamp for the box - 2 pcs.

Mounting plate

4-track rope roller guide

Hook

Mounting accessories

Specification: Article: PROPULLATOR off-road winch 4500-B

Part number: MP10060673

Item condition: New

Material: Aluminum, steel

Maximum towing capacity: 4,500 lbs (2,040 kg)

Engine power: 1.6 HP / 1.2 kW, 12 V

Gear: Three-stage planetary gear

Gear ratio: 153:1

Rope material: Steel

Rope diameter: 5.5 mm

Rope length: 12.5 m

Forward gear: Yes

Down gear rear: Yes

Idle speed: Yes

Overheating protection: Yes

Brake: Automatic

Extraction speed: 8 m/min

Dimensions (LxWxH): 32.7 x 11.5 x 11.5 cm

Weight: 8.6 kg

Shipping dimensions (LxWxH): 40.5 x 27.7 x 17.5 cm

Shipping weight: 13.02 kg
