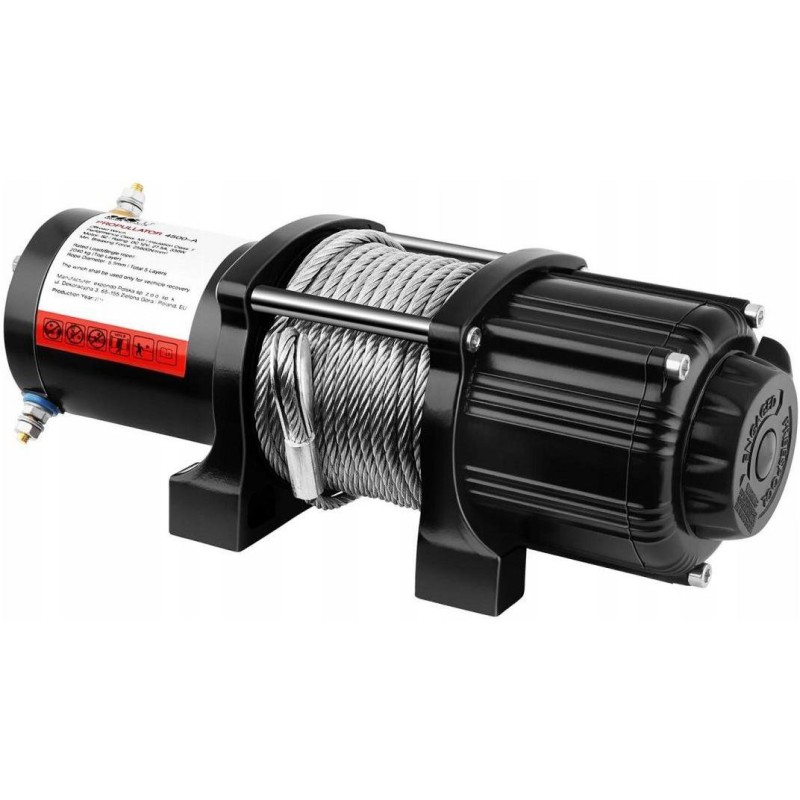

Electric rope winch msw 10060665

ELECTRIC ROPE WINCH, OFF-ROAD 2040KG MSW 10060665 PROPULLATOR 4500-A Product highlights

Pulling force: 2040 kg

Permanent magnet

Rope length: 15 m

Rope diameter: 5.5 mm

Drum Ø: 41 mm

Features:

· Strength pulling force 4500lbs / 2040kg

· 3-speed planetary gearbox with a gear ratio of 153:1

· Pulley block (4t) to double the force or change the direction of pulling

· Wired and wireless remote control included

· Twist-resistant steel rope 15m

Winch - 4500lbs - 2040kg The PROPULLATOR 4500-A winch is perfect when you need to pull a vehicle or other object in difficult terrain. The MSW device is intended for pulling e.g. off-road vehicles using an efficient 1.3 HP engine and a 15 m long steel rope. The model will pass the test in mountainous places, while driving off-road. Perfectly fits all quads, ATVs, trailers, but can also be used in households to remove tree trunks, logs, etc.

MSW car winch - descriptionThe pulling force of 4500lbs / 2040kg is due to the efficient engine, large drum and strong steel rope. The 1.3 HP / 1000 W engine is enough to easily extract the vehicle, e.g. from a ditch. The equipment is equipped with a permanent magnet (brushless design), which ensures greater efficiency than, for example, induction motors. A three-stage planetary gearbox allows the user to regulate the power transmission thanks to a special gear. The reduction ratio is 153:1. The PROPULLATOR 4500-A model has forward and reverse gears and a manual clutch for quick rope unwinding. The intermittent duty cycle allows the engine to operate in intervals without reaching its highest temperature. The solution used protects against overheating. Operational safety is guaranteed by an automatic braking system. In the absence of electricity, the pulled item will stay in one place. In addition, the MSW winch protects against overload and is protected against rain, snow and dirt, which is particularly important in off-road conditions.

2 remote controls allow for convenient operation. You can mount the wired one, for example, on the steering wheel. Wireless is used to operate the device outside the vehicle to control the extraction process. Its range is up to 30 m.

The block improves the efficiency of the equipment. It can withstand a weight of 4 t and doubles the pulling force or allows you to change its direction. Both of these functions are useful in recovering the vehicle in difficult terrain conditions.

The strong steel rope is 15 m long and 5.5 mm in diameter. It is characterized by resistance to winding and mechanical damage (compared to synthetic ropes). The four-track guide provides less friction and protects the rope from wear. This element makes work smoother, even when changing the angle frequently. The high thrust speed is due to the efficient engine and optimal drum size. The MSW winch reaches a speed of 5.4 m/min (without load). A complete set of accessories makes the PROPULLATOR 4500-A model immediately ready for operation. The product includes: a control box with cables, 2 mounting clamps, a mounting plate for easy installation of a 12V winch, a 4-track rope guide, 2 remote controls and a pulley. At the end of the rope there is a mounting hook with a reliable safety latch. Compact and relatively light equipment is suitable for most vehicles, including small quads. The solid aluminum housing provides a balance between durability and weight. Additionally, it is characterized by an aesthetic appearance.

The PROPULLATOR 4500-A winch is an excellent tool for winching vehicles in difficult terrain conditions. It will pass the test with ATVs, quads, trailers, etc. The MSW product is equipped with an efficient 1.3 HP engine and a 15-meter steel rope. It will work well not only in professional use and off-road racing, but also in households for removing e.g. tree trunks.

· High towing capacity - 4500lbs / 2040kg

· Power transmission adjustment - 3-stage planetary gear

· Comfortable operation - wired and wireless remote control

· Possibility to increase the pulling force or change direction - pulley

· Solid steel rope - torsion resistance

· Safety - automatic braking system

Model PROPULLATOR 4500-A

Catalog number 10060665

Article status New

Housing material Aluminum

Rope material Steel

Motor power 1.3 HP / 1000 W

Voltage 12V

Motor type Permanent magnet motor

Duty Cycle Intermittent

3-speed planetary gearbox

Gear ratio 153:1

Pulling force 2040 kg / 4500 lbs

Pulling speed 5.4 m/min

Rope length 15 m

Rope diameter 5.5 mm

Rope protection system 4-step guide

Drum diameter 41 mm

Braking system Automatic

Clutch type Slip ring

Remote control type 1 x wired 1 x wireless

Range of the wireless remote control 30 m

Block 1 x 4 t

Mounting plate included Yes

Dimensions (LxWxH) 17.50 x 33.00 x 13.00 cm

Weight 10.50 kg

Shipping dimensions (LxWxH) 42.00 x 28.00 x 17.00 cm

Shipping weight 14.00 kg
