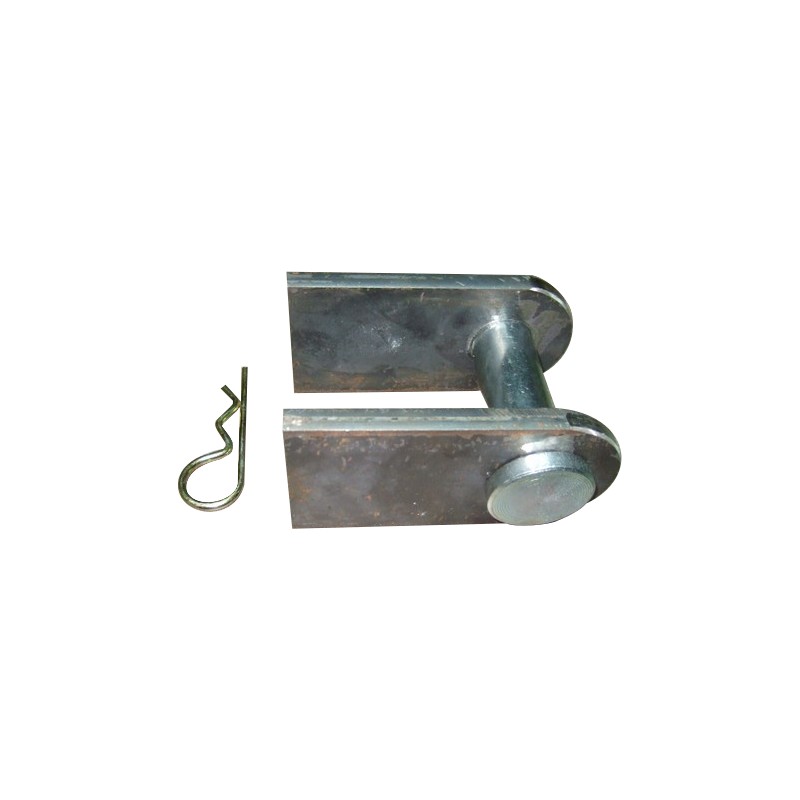

Mounting the actuator with bolt eye diameter 30

Hydraulic cylinder mounting set fi 30 Manufacturer: SM-G (SKRAW MET GROUP)SKRAW MET CODE: [2030]The mounting is welded to the structure.

Due to the universality of use, the pins do not have holes for security (pin length 100 mm without head).

Technologically, holes are drilled after welding the mountings and determining the distance, which depends on the thickness of the actuator tip.

Dear customer! The nominal tolerance range of the hole made can be up to -0.5 mm (i.e. FI 29.5 mm - 30 mm), which means that the pin can fit quite tightly.

The set includes: Two pieces of fasteners [0103]

One pin [ 0112]

One security [0107]
