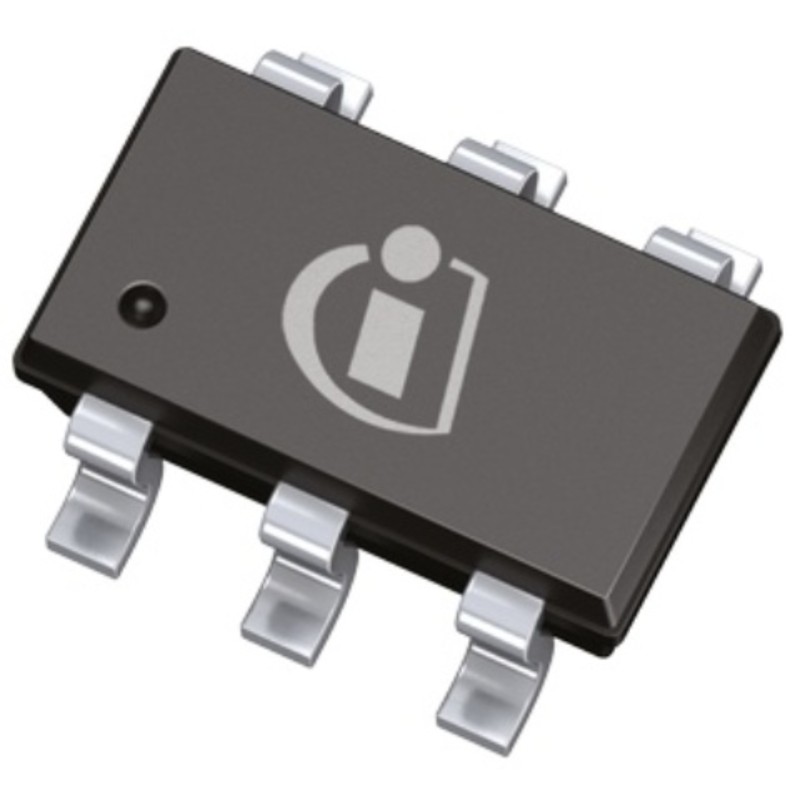

50 pcs - TLE49662GHTSA1 Infineon SMD Hall Effect Sensor Switch

The Infineon high precision hall switch with two outputs is an integrated circuit dual Hall-effect sensor designed specifically for highly accurate applications. Precise magnetic switching points and high temperature stability are achieved by active compensation circuits and chopper techniques on chip. The sensor provides two independent speed outputs at Q1 and Q2 with the status corresponding to the magnetic field value at the respective hall element H1 and H2. Both Hall elements have the identical thresholds for BOP and BRP. For positive magnetic fields exceeding the threshold BOP1 and/or BOP2 the corresponding output Q1 and/or Q2 is low, whereas for negative magnetic fields lower than BRP the output switches to high.Reverse battery protectionPeak temperatures up to 195°CLow jitter (typ. 1μs)Digital output signalsExcellent matching of the 2 Hall probesHall plate distance 1.45mmTwo independent speed outputs
