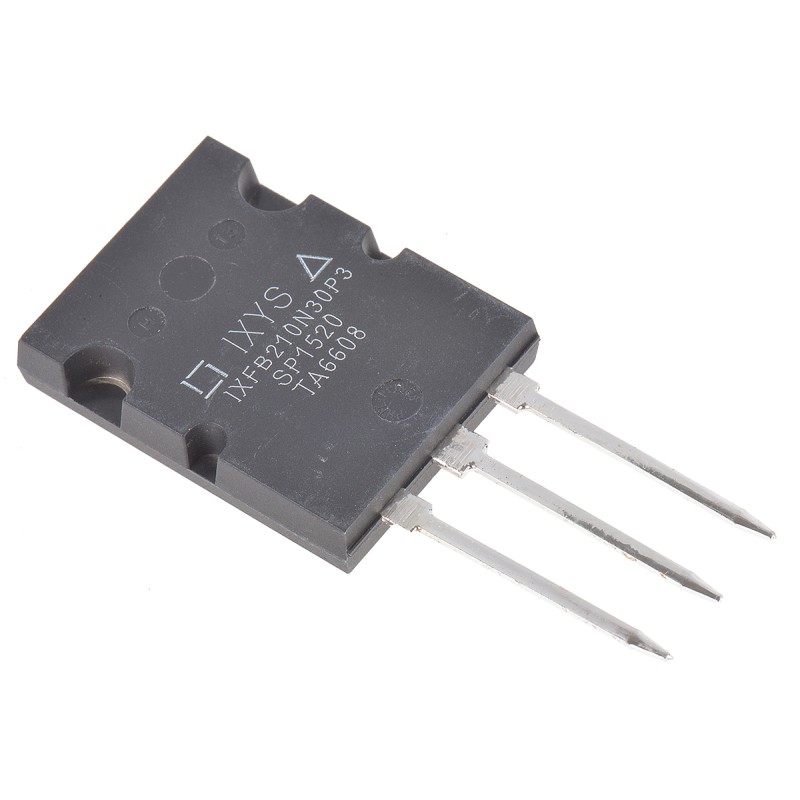

13 pcs - N-Channel MOSFET, 210 A, 300 V, 3-Pin PLUS264 IXYS IXFB210N30P3

Data sheet

Manufacturer

IXYS

A-Supplier

Allparts-UK-R

Series

HiperFET, Polar3

Mounting Type

Through Hole

Pin Count

3

Package Type

PLUS264

Maximum Power Dissipation

1.89 kW

Number of Elements per Chip

1

Channel Type

N

Maximum Continuous Drain Current

210 A

Maximum Drain Source Voltage

300 V

Maximum Drain Source Resistance

14.5 mΩ

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Typical Gate Charge @ Vgs

268 nC @ 10 V

Transistor Material

Si
