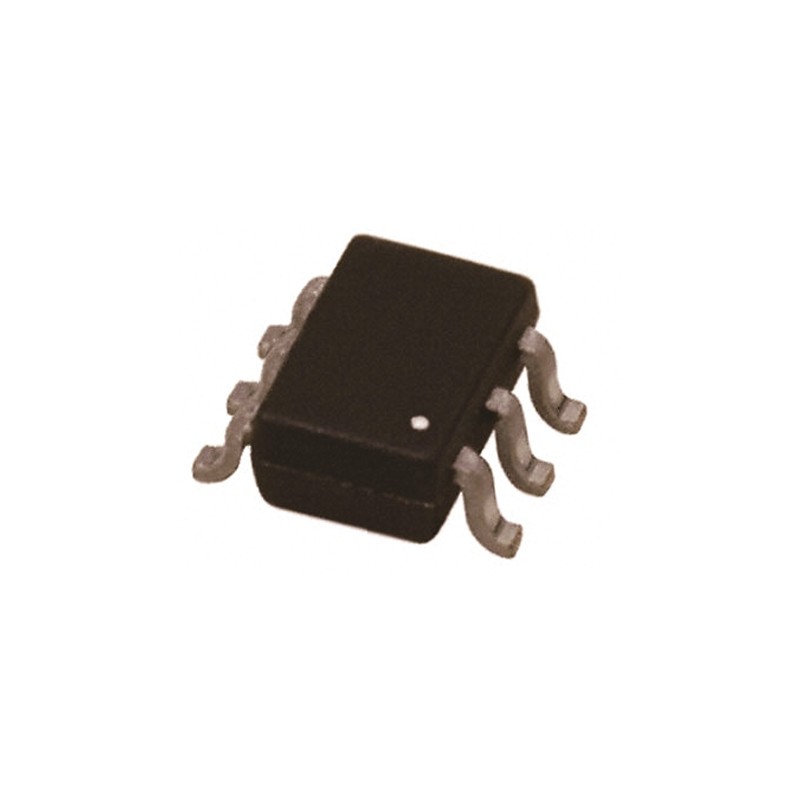

3000 pcs - Dual N/P-Channel-Channel MOSFET, 2 A, 4.5 A, 30 V, 6-Pin TSOT-26 Diodes Inc DMG6601LVT-7

Data sheet

Manufacturer

DiodesZetex

A-Supplier

Allparts-UK-R

Mounting Type

Surface Mount

Pin Count

6

Package Type

TSOT-26

Maximum Power Dissipation

1.3 W

Number of Elements per Chip

2

Channel Type

N, P

Maximum Continuous Drain Current

2 A, 4.5 A

Maximum Drain Source Voltage

30 V

Maximum Drain Source Resistance

85 mΩ, 190 mΩ

Transistor Configuration

Isolated

Maximum Gate Source Voltage

-12 V, +12 V

Typical Gate Charge @ Vgs

12.3 nC @ 10 V, 13.8 nC @ 10 V

Transistor Material

Si
