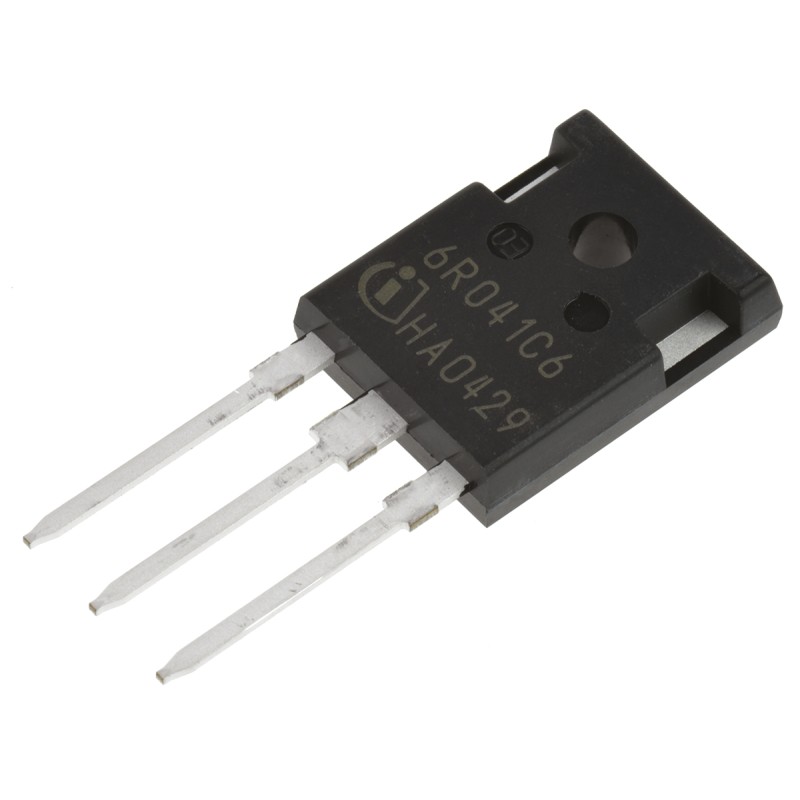

30 pcs - N-Channel MOSFET, 77.5 A, 650 V, 3-Pin TO-247 Infineon IPW60R041C6FKSA1

Data sheet

Manufacturer

Infineon

A-Supplier

Allparts-UK-R

Series

CoolMOS C6

Mounting Type

Through Hole

Pin Count

3

Package Type

TO-247

Maximum Power Dissipation

481 W

Number of Elements per Chip

1

Channel Type

N

Maximum Continuous Drain Current

77.5 A

Maximum Drain Source Voltage

650 V

Maximum Drain Source Resistance

41 mΩ

Minimum Gate Threshold Voltage

2.5V

Transistor Configuration

Single

Maximum Gate Source Voltage

-20 V, +20 V

Typical Gate Charge @ Vgs

290 nC @ 10 V

Transistor Material

Si
