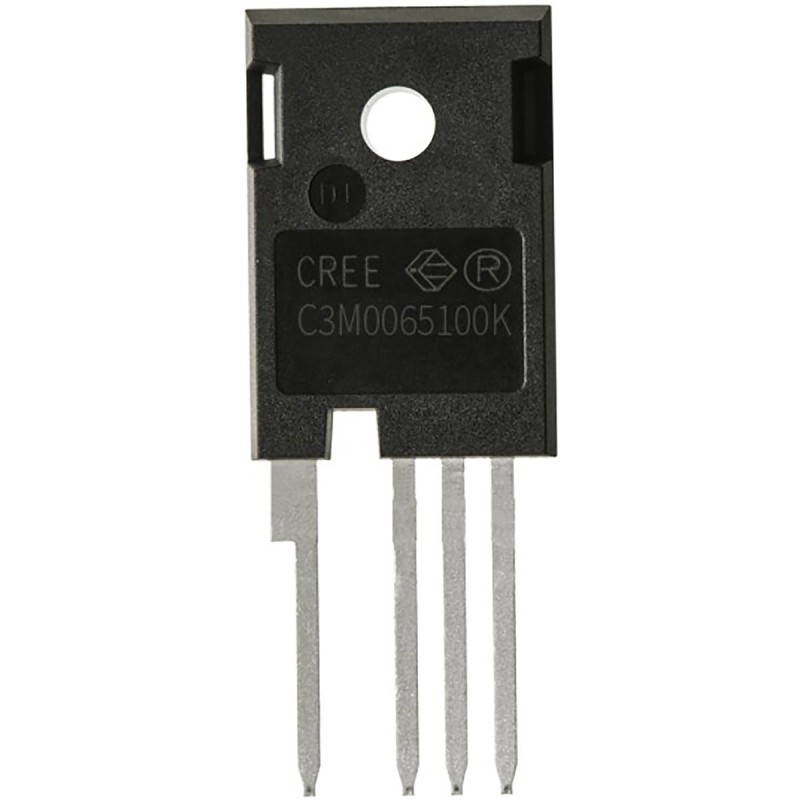

30 pcs - SiC N-Channel MOSFET, 35 A, 1000 V, 4-Pin TO-247-4 Wolfspeed C3M0065100K

Data sheet

Manufacturer

Wolfspeed

A-Supplier

Allparts-UK-R

Series

C3M

Mounting Type

Through Hole

Pin Count

4

Package Type

TO-247-4

Maximum Power Dissipation

113.5 W

Number of Elements per Chip

1

Channel Type

N

Maximum Continuous Drain Current

35 A

Maximum Drain Source Voltage

1000 V

Maximum Drain Source Resistance

90 mΩ

Minimum Gate Threshold Voltage

1.8V

Maximum Gate Source Voltage

-8 V, +19 V

Typical Gate Charge @ Vgs

35 nC @ 15 V, 35 nC @ 4 V

Transistor Material

SiC

Forward Diode Voltage

4.8V
