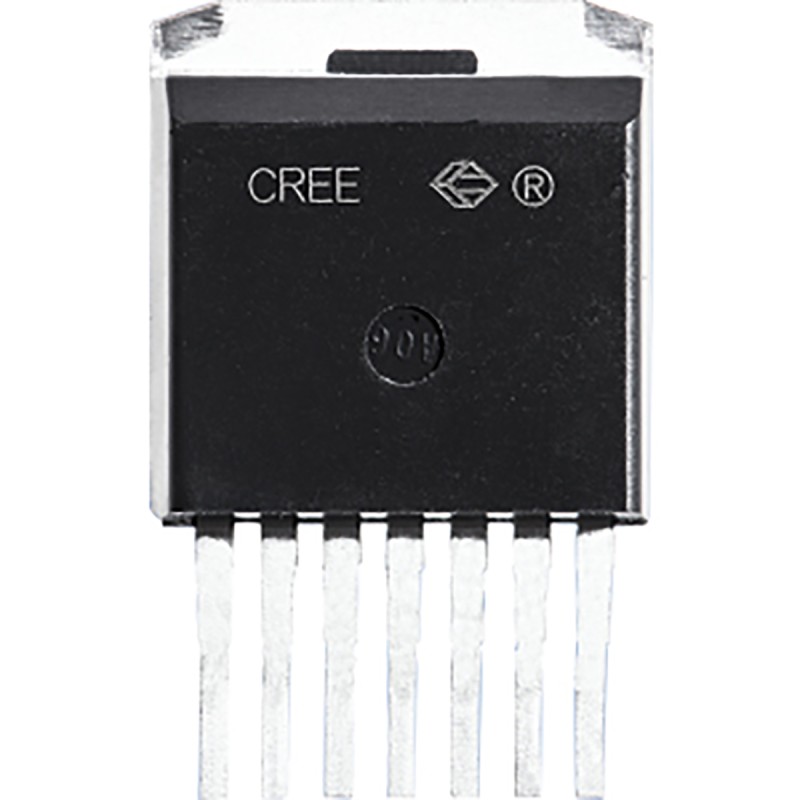

2 pcs - SiC N-Channel MOSFET, 22 A, 900 V, 7-Pin D2PAK Wolfspeed C3M0120090J

Data sheet

Manufacturer

Wolfspeed

A-Supplier

Allparts-UK-R

Mounting Type

Surface Mount

Pin Count

7

Package Type

TO-263-7

Maximum Power Dissipation

83 W

Number of Elements per Chip

1

Channel Type

N

Maximum Continuous Drain Current

22 A

Maximum Drain Source Voltage

900 V

Maximum Drain Source Resistance

120 mΩ

Minimum Gate Threshold Voltage

1.8V

Transistor Configuration

Single

Maximum Gate Source Voltage

-8 V, 18 V

Typical Gate Charge @ Vgs

17.3 nC @ 4/15V

Transistor Material

SiC
