Product Details
Allparts-UK/15/R/827-4672

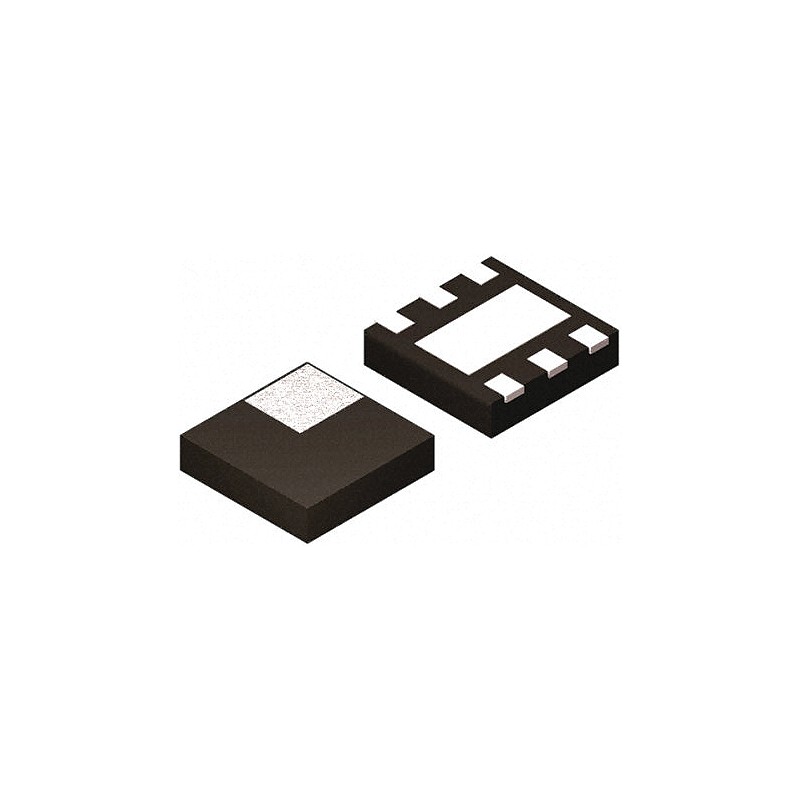

CSD16301Q2
120 Items
Data sheet
- Manufacturer
- TEXAS INSTRUMENTS
- A-Supplier
- Allparts-UK-R
- Series
- NexFET
- Mounting Type
- Surface Mount
- Pin Count
- 6
- Package Type
- WSON
- Maximum Power Dissipation
- 2.3 W
- Number of Elements per Chip
- 1
- Channel Type
- N
- Maximum Continuous Drain Current
- 5 A
- Maximum Drain Source Voltage
- 25 V
- Maximum Drain Source Resistance
- 34 mΩ
- Minimum Gate Threshold Voltage
- 0.9V
- Transistor Configuration
- Single
- Maximum Gate Source Voltage
- -8 V, +10 V
- Typical Gate Charge @ Vgs
- 2 nC @ 4.5 V
- Transistor Material
- Si
