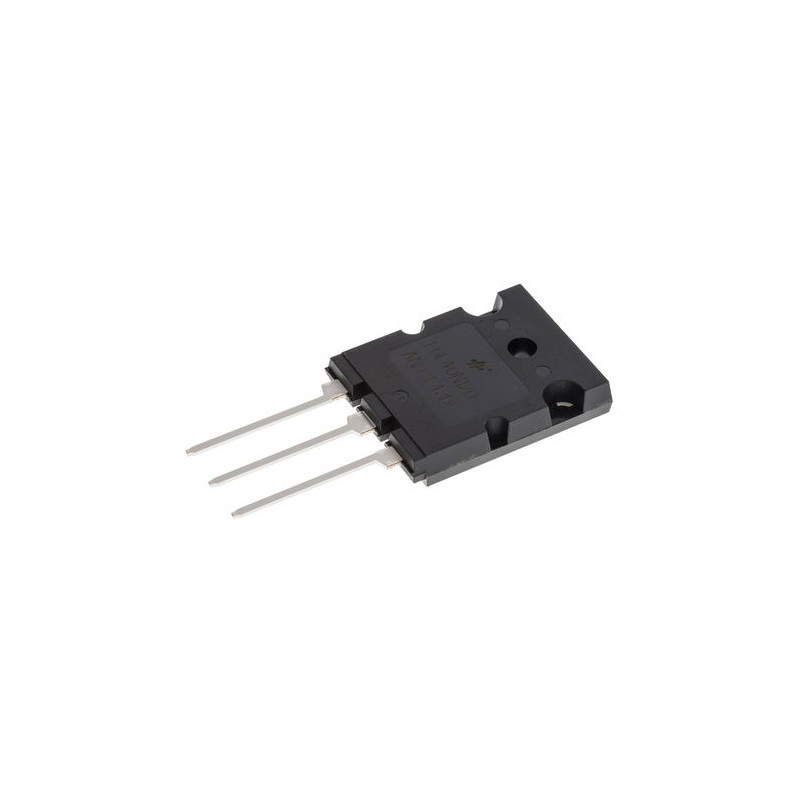

    1 pcs - N-Channel MOSFET, 98 A, 500 V, 3-Pin TO-264 IXYS IXFK98N50P3
    • 1 pcs - N-Channel MOSFET, 98 A, 500 V, 3-Pin TO-264 IXYS IXFK98N50P3
    • 1 pcs - N-Channel MOSFET, 98 A, 500 V, 3-Pin TO-264 IXYS IXFK98N50P3

    1 pcs - N-Channel MOSFET, 98 A, 500 V, 3-Pin TO-264 IXYS IXFK98N50P3

    Allparts-UK/15/R/802-4414
    IXYS
    £45.35
    Delivery: 4-7 business days
    Quantity
    13 Items

    Product Details
    IXYS
    Allparts-UK/15/R/802-4414
    IXFK98N50P3
    13 Items

    Data sheet

    Manufacturer
    IXYS
    A-Supplier
    Allparts-UK-R
    Series
    HiperFET, Polar3
    Mounting Type
    Through Hole
    Pin Count
    3
    Package Type
    TO-264
    Maximum Power Dissipation
    1.3 kW
    Number of Elements per Chip
    1
    Channel Type
    N
    Maximum Continuous Drain Current
    98 A
    Maximum Drain Source Voltage
    500 V
    Maximum Drain Source Resistance
    50 mΩ
    Transistor Configuration
    Single
    Maximum Gate Source Voltage
    -30 V, +30 V
    Typical Gate Charge @ Vgs
    197 nC @ 10 V
    Transistor Material
    Si
