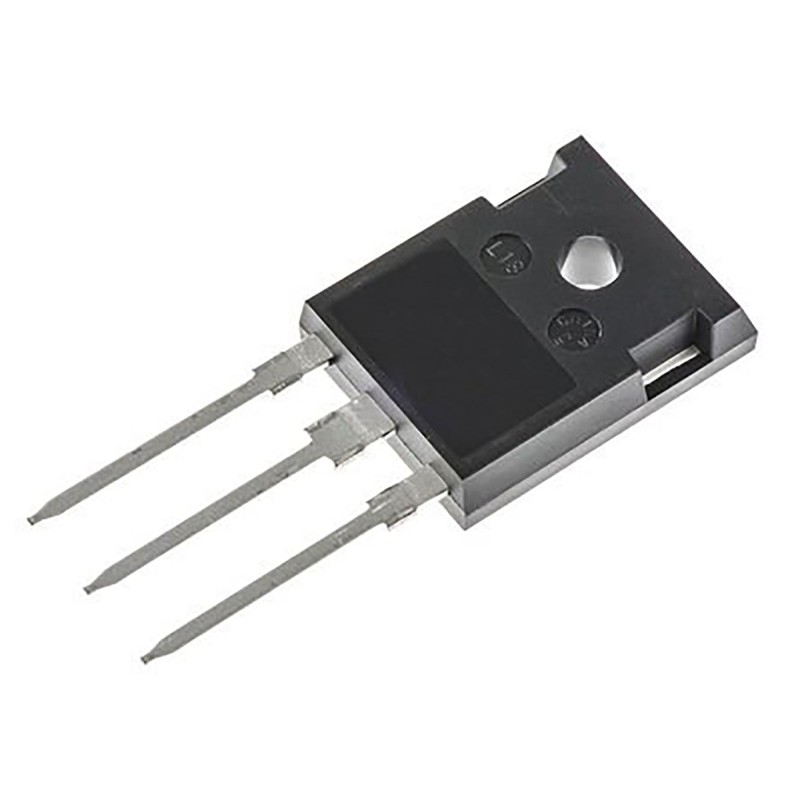

1 pcs - SiC N-Channel MOSFET, 23 A, 900 V, 3-Pin TO-247 Wolfspeed C3M0120090D
    • 1 pcs - SiC N-Channel MOSFET, 23 A, 900 V, 3-Pin TO-247 Wolfspeed C3M0120090D
    • 1 pcs - SiC N-Channel MOSFET, 23 A, 900 V, 3-Pin TO-247 Wolfspeed C3M0120090D

    1 pcs - SiC N-Channel MOSFET, 23 A, 900 V, 3-Pin TO-247 Wolfspeed C3M0120090D

    Allparts-UK/15/R/915-8849
    Wolfspeed
    £25.16
    Delivery: 4-7 business days
    Quantity
    Last items in stock
    1 Item

    Product Details
    Wolfspeed
    Allparts-UK/15/R/915-8849
    C3M0120090D
    1 Item

    Data sheet

    Manufacturer
    Wolfspeed
    A-Supplier
    Allparts-UK-R
    Mounting Type
    Through Hole
    Pin Count
    3
    Package Type
    TO-247
    Maximum Power Dissipation
    97 W
    Number of Elements per Chip
    1
    Channel Type
    N
    Maximum Continuous Drain Current
    23 A
    Maximum Drain Source Voltage
    900 V
    Maximum Drain Source Resistance
    155 mΩ
    Minimum Gate Threshold Voltage
    1.8V
    Transistor Configuration
    Single
    Maximum Gate Source Voltage
    -8 V, +18 V
    Typical Gate Charge @ Vgs
    17.3 nC @ 15 V
    Transistor Material
    SiC
    Forward Diode Voltage
    4.8V
