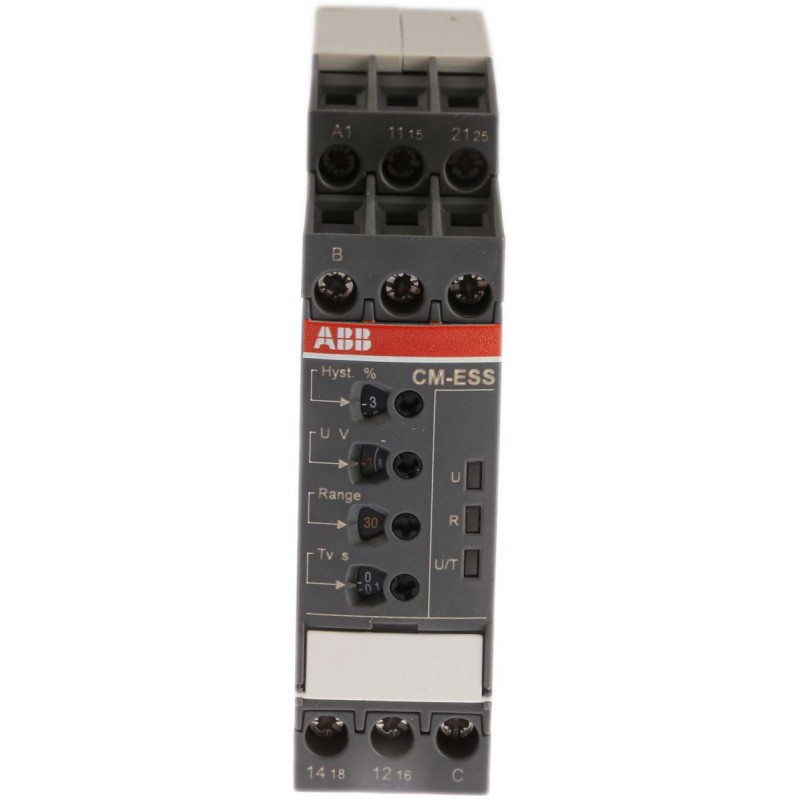

    1 pcs - ABB Voltage Monitoring Relay, 1 Phase, DPDT, 3-30 V, 6-60 V, 30-300 V, 60-600 V, DIN Rail
    • 1 pcs - ABB Voltage Monitoring Relay, 1 Phase, DPDT, 3-30 V, 6-60 V, 30-300 V, 60-600 V, DIN Rail
    • 1 pcs - ABB Voltage Monitoring Relay, 1 Phase, DPDT, 3-30 V, 6-60 V, 30-300 V, 60-600 V, DIN Rail
    • 1 pcs - ABB Voltage Monitoring Relay, 1 Phase, DPDT, 3-30 V, 6-60 V, 30-300 V, 60-600 V, DIN Rail

    1 pcs - ABB Voltage Monitoring Relay, 1 Phase, DPDT, 3-30 V, 6-60 V, 30-300 V, 60-600 V, DIN Rail

    Allparts-UK/15/R/775-7955
    ABB
    £469.30
    Delivery: 4-7 business days
    Quantity
    9 Items

    Product Details
    ABB
    Allparts-UK/15/R/775-7955
    1SVR730830R0400 CM-ESS.2S
    9 Items

    Data sheet

    Manufacturer
    ABB
    Dimensions
    103.7 x 22.5 x 85.6mm
    Width
    22.5mm
    Height
    85.6mm
    Length
    103.7mm
    A-Supplier
    Allparts-UK-R
    Series
    CM-ESS
    Terminal Type
    Screw
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -20°C
    Standards Met
    IEC
    Contact Configuration
    DPDT
    Operating Temperature Range
    +60°C
    Monitoring Application
    Voltage
    Electrical Phase
    1
    Voltage Sensing Range
    3-30 V, 6-60 V, 30-300 V, 60-600 V
    Voltage Sensitivity
    Overvoltage, Undervoltage
    Time Delay
    0 s, 0.1 - 30s
    Minimum Voltage Sensed
    3 V (Volts), 6 V (Volts), 30 V (Volts), 60 V (Volts)
    Minimum Current Sensed
    10mA
    Current Range
    2 - 4A
    Maximum Voltage Sensed
    30 V, 60 V, 300 V, 600V
