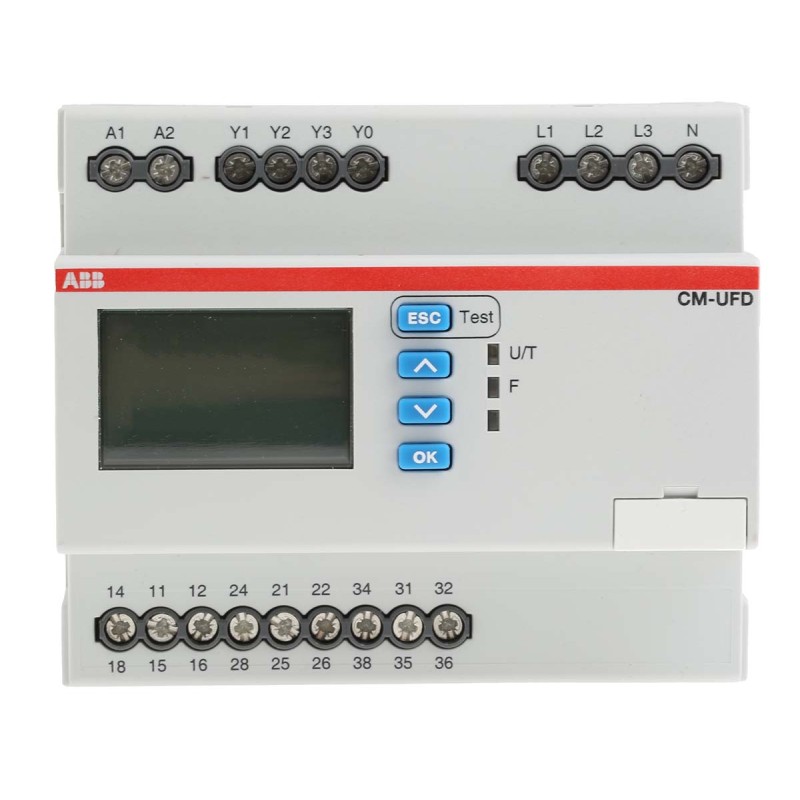

1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail

1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, DIN Rail

Allparts-UK/15/R/876-2557
ABB
£1,389.30
Quantity
Out-of-Stock

Product Details
ABB
Allparts-UK/15/R/876-2557
1SVR560730R3401 CM-UFD.M31

Data sheet

Manufacturer
ABB
Dimensions
108 x 67 x 90mm
Width
67mm
Height
90mm
Length
108mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
CM-UFD
Terminal Type
Screw
Maximum Operating Temperature
+60°C
Mounting Type
DIN Rail
Minimum Operating Temperature
-20°C
Contact Configuration
SPDT
Special Features
Monitoring of ROCOF (Rate of Change of Frequency), Multiline Backlit LCD Display, Password Setting Protection
Operating Temperature Range
-20 - +60°C
Monitoring Application
Frequency, Voltage
Electrical Phase
45352
Voltage Sensitivity
Overvoltage, Undervoltage
Time Delay
±20ms
Minimum Voltage Sensed
0V ac
Minimum Current Sensed
2A
Maximum Current Sensed
4A
Current Range
2 - 4A
Maximum Voltage Sensed
540V
