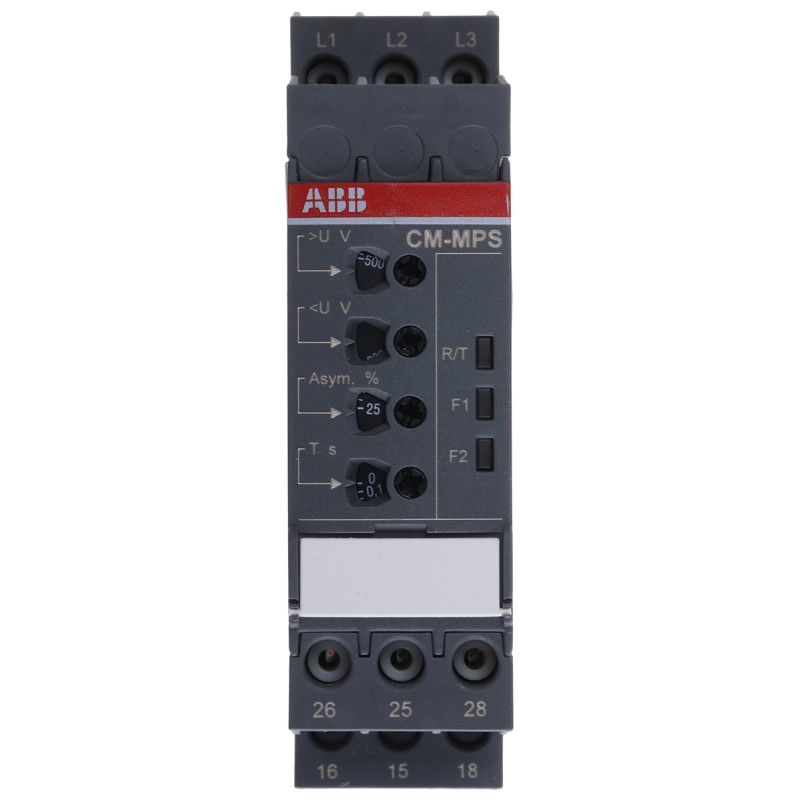

    1 pcs - ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 - 500V ac, DIN Rail
    • 1 pcs - ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 - 500V ac, DIN Rail
    • 1 pcs - ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 - 500V ac, DIN Rail
    • 1 pcs - ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 - 500V ac, DIN Rail

    1 pcs - ABB Phase, Voltage Monitoring Relay, 3 Phase, DPDT, 300 - 500V ac, DIN Rail

    Allparts-UK/15/R/775-8034
    ABB
    £490.38
    Delivery: 4-7 business days
    Quantity
    4 Items

    Product Details
    ABB
    Allparts-UK/15/R/775-8034
    1SVR740884R3300 CM-MPS.41P
    4 Items

    Data sheet

    Manufacturer
    ABB
    Dimensions
    103.7 x 22.5 x 85.6mm
    Width
    22.5mm
    Height
    85.6mm
    Length
    103.7mm
    A-Supplier
    Allparts-UK-R
    Series
    CM-MPS
    Terminal Type
    Push In
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -25°C
    Contact Configuration
    DPDT
    Operating Temperature Range
    +60°C
    Monitoring Application
    Phase, Voltage
    Electrical Phase
    3
    Voltage Sensing Range
    300 - 500V ac
    Voltage Sensitivity
    Overvoltage, Undervoltage
    Time Delay
    0.1 - 30 s, 0s
    Minimum Voltage Sensed
    300V ac
    Maximum Voltage Sensed
    500V ac
