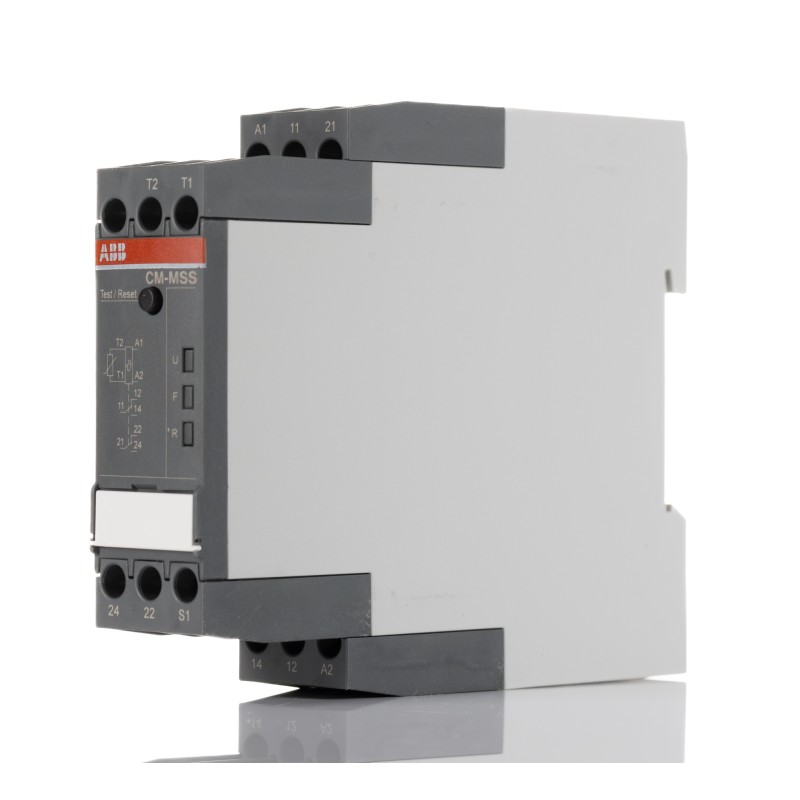

    1 pcs - ABB Temperature Monitoring Relay, DPDT, DIN Rail
    • 1 pcs - ABB Temperature Monitoring Relay, DPDT, DIN Rail
    • 1 pcs - ABB Temperature Monitoring Relay, DPDT, DIN Rail
    • 1 pcs - ABB Temperature Monitoring Relay, DPDT, DIN Rail

    1 pcs - ABB Temperature Monitoring Relay, DPDT, DIN Rail

    Allparts-UK/15/R/876-5045
    ABB
    £331.80
    Delivery: 4-7 business days
    Quantity
    7 Items

    Product Details
    ABB
    Allparts-UK/15/R/876-5045
    1SVR730712R1200 CM-MSS.41S
    7 Items

    Data sheet

    Manufacturer
    ABB
    Dimensions
    103.7 x 22.5 x 85.6mm
    Width
    22.5mm
    Height
    85.6mm
    Length
    103.7mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Series
    CM-MSS
    Terminal Type
    Screw
    Maximum Operating Temperature
    +60°C
    Mounting Type
    DIN Rail
    Minimum Operating Temperature
    -25°C
    Standards Met
    UL
    Contact Configuration
    DPDT
    Special Features
    Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit
    Operating Temperature Range
    -25 - +60°C
    Monitoring Application
    Temperature
    Time Delay
    <,100ms
    Current Range
    Maximum of 3.7mA
