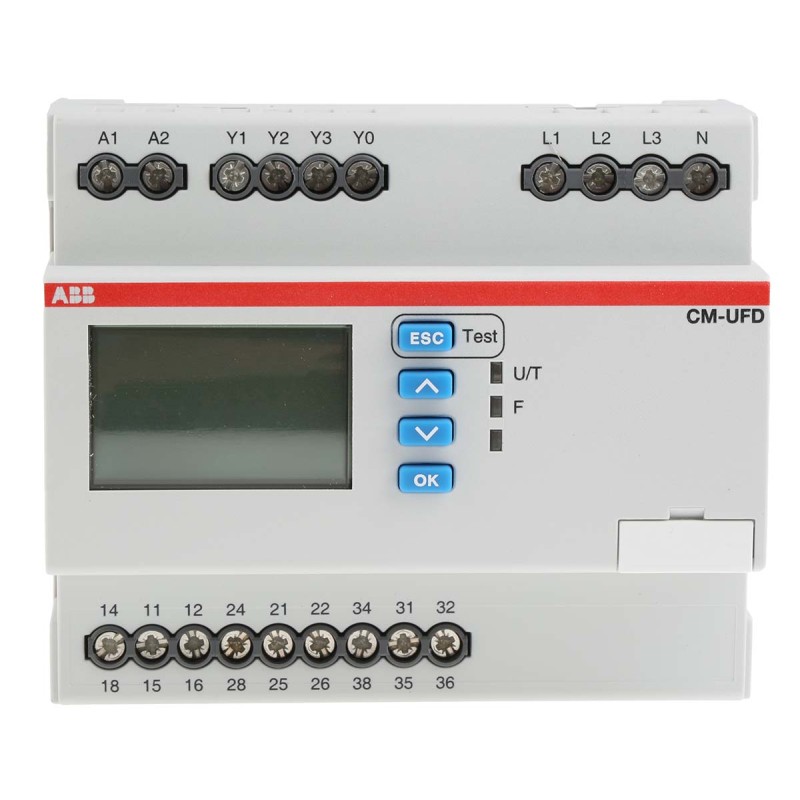

1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, 57.7 - 240 V ac, 99.9 - 415 V dc, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, 57.7 - 240 V ac, 99.9 - 415 V dc, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, 57.7 - 240 V ac, 99.9 - 415 V dc, DIN Rail
  • 1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, 57.7 - 240 V ac, 99.9 - 415 V dc, DIN Rail

1 pcs - ABB Frequency, Voltage Monitoring Relay, 1, 3 Phase, SPDT, 57.7 - 240 V ac, 99.9 - 415 V dc, DIN Rail

Allparts-UK/15/R/876-2551
ABB
£1,238.50
Quantity
Out-of-Stock

Product Details
ABB
Allparts-UK/15/R/876-2551
1SVR560730R3402 CM-UFD.M33

Data sheet

Manufacturer
ABB
Dimensions
108 x 67 x 90mm
Width
67mm
Height
90mm
Length
108mm
Number of poles
1
A-Supplier
Allparts-UK-R
Series
CM-UFD
Terminal Type
Screw
Maximum Operating Temperature
+60°C
Mounting Type
DIN Rail
Minimum Operating Temperature
-20°C
Contact Configuration
SPDT
Special Features
Monitoring of ROCOF (Rate of Change of Frequency), Multiline Backlit LCD Display, Password Setting Protection
Operating Temperature Range
-20 - +60°C
Monitoring Application
Frequency, Voltage
Electrical Phase
45352
Voltage Sensing Range
57.7 - 240 V ac, 99.9 - 415 V dc
Voltage Sensitivity
Overvoltage, Undervoltage
Time Delay
±20ms
Minimum Voltage Sensed
0V ac
Current Range
6.4mA
Maximum Voltage Sensed
415V dc
