Product Details
Allparts-UK/15/R/146-474

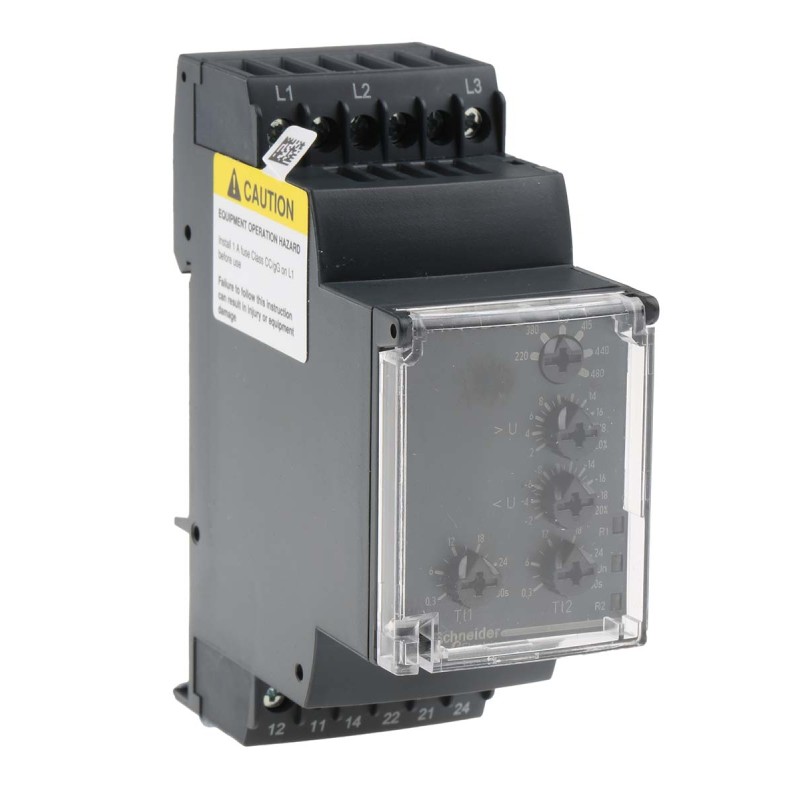

RM35UB330
Data sheet
- Manufacturer
- SCHNEIDER ELECTRIC
- Dimensions
- 72 x 35 x 90mm
- Width
- 35mm
- Height
- 90mm
- Length
- 72mm
- A-Supplier
- Allparts-UK-R
- Series
- Harmony Control
- Better World Product
- Yes
- Better World Verification
- Green Premium
- Terminal Type
- Screw
- Maximum Operating Temperature
- +50°C
- Mounting Type
- DIN Rail
- Minimum Operating Temperature
- -20°C
- Contact Configuration
- DPDT
- Operating Temperature Range
- +50°C
- Monitoring Application
- Voltage
- Electrical Phase
- 3
- Voltage Sensing Range
- 194 - 528V ac
- Voltage Sensitivity
- Absence of Neutral, Overvoltage and Undervoltage Between Neutral, Overvoltage and Undervoltage Between Phase
- Time Delay
- 0.3 - 30s
- Minimum Voltage Sensed
- 194V ac
- Maximum Voltage Sensed
- 528V ac
