Mini work halogen led flood 10w off road 12 24v

AUCTION SUBJECT:

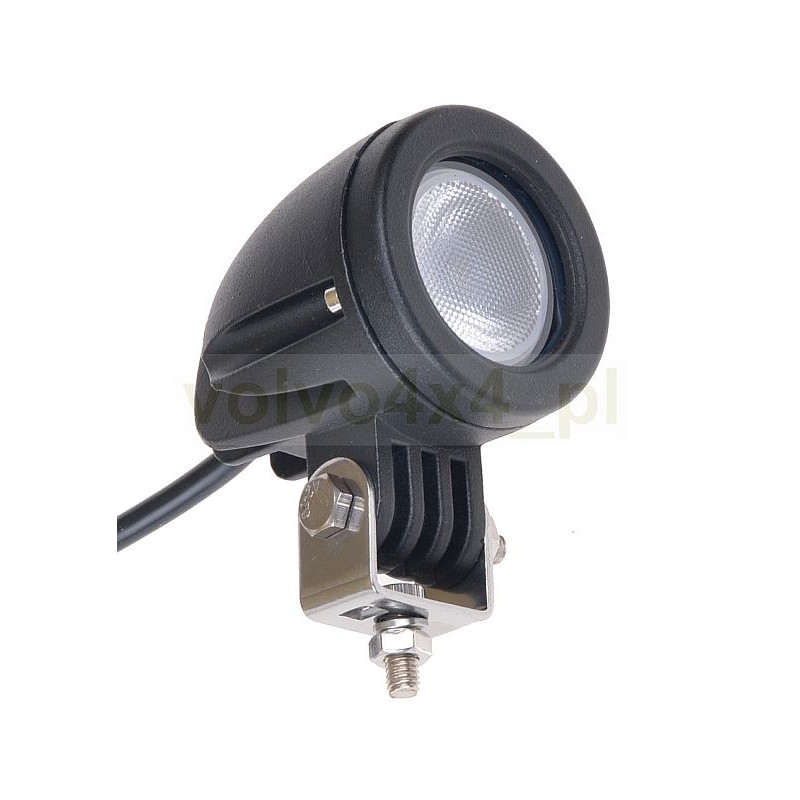

Miniature, waterproof and energy-saving 10W CREE LED XM-L work lamp with diffused, wide flood light - black housing, bottom mounting.

KML112F

Application: additional work lighting in off-road vehicles, motorcycles, construction and agricultural machines

the hermetic connector can be purchased at our other auctions

In this lamp model, the mounting foot with a steel handle is non-replaceable.

Wide, diffused light, in the photo the lamp is mounted at a height of approx. 70 cm

BL-10F30R lamp parameters:

- lamp power: 10W (equivalent to standard light with a minimum power of 50W)

- theoretical current consumption at 12V: max 0.85A

- real current consumption at 13.8V: 0.6A

- light source: 1x 10W LED CREE XM-L

- lighting type: diffused flood light

- color temperature: daylight white 6500K

- real light flux: not less than 600lm

- supply voltage: 9V-32V

- protection level: IP67

- service life: 50,000h

- operating temperature: -40 up to +80 oC

- housing: made of aluminum alloys

- front glass: polycarbonate

- weight: 0.25 kg

- dimensions: diameter 56mm, depth 66mm, height with lower base 86mm

- assembly: from the bottom with 1 M5 screw with a base and tilt adjustment

- power supply: does not require additional relays

- set includes: lamp with cables approx. 25 cm, handle with screws

On our other auctions you can buy other models of LED lamps as well as switches and accessories
