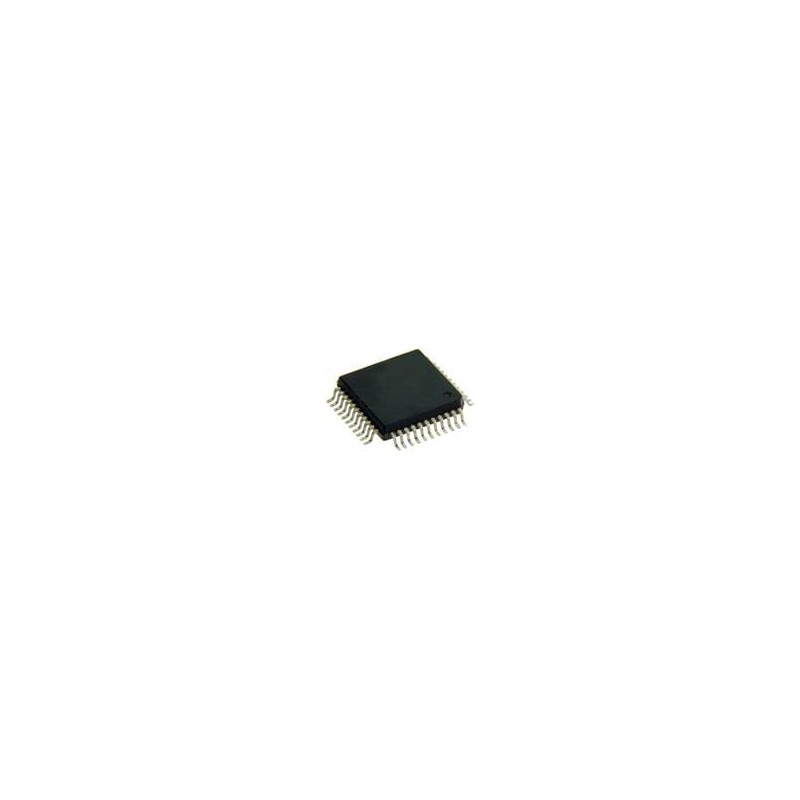

    1 pcs : W65C02S6TQG-14 - Microprocessors - MPU 8-bit Microprocessor
    • 1 pcs : W65C02S6TQG-14 - Microprocessors - MPU 8-bit Microprocessor

    1 pcs : W65C02S6TQG-14 - Microprocessors - MPU 8-bit Microprocessor

    Allparts-UK/M/955-W65C02S6TQG-14
    £26.14
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    W65C02S 8-Bit Microprocessors Western Design Center W65C02S 8-bit Microprocessors are low-power, cost-sensitive devices with a fully static core and a PHI2 clock that can be stopped when it is in a high or low state. Western Design Center W65C02S MPUs have a variable-length instruction set and a manually optimized core size that make these devices an excellent choice for low power System-on-Chip (SoC) designs. The WDC W65C02S has a 16-bit address bus providing access to 65,536 bytes of memory space. These 8-bit microprocessors also feature low power consumption (150µA@1MHz).
    Product Details
    Western Design Center (WDC)
    Allparts-UK/M/955-W65C02S6TQG-14
    W65C02S6TQG-14
    10 Items

    Data sheet

    Manufacturer
    Western Design Center (WDC)
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Number of Cores
    1 Core
    Product Type
    Microprocessors - MPU
    Package/Case
    QFP-44
    Core
    W65C02S
    Product Category
    Microprocessors - MPU
    Packaging
    Tray
    RoHS
    Details
    Maximum Clock Frequency
    14 MHz
    Data Bus Width
    8 bit
    Brand
    Western Design Center (WDC)
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    1.8 V to 5 V
    Processor Series
    65x
    Factory Pack Quantity Factory Pack Quantity
    15
    Subcategory
    Microprocessors - MPU
    Unit Weight
    498.600 mg
    L1 Cache Instruction Memory
    -
    L1 Cache Data Memory
    -
