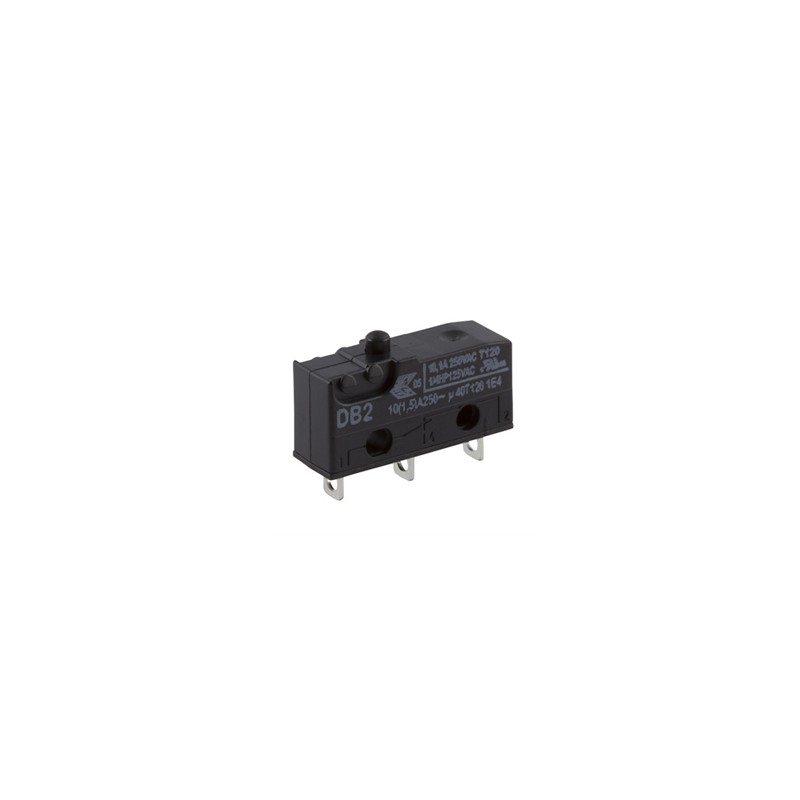

    10 pcs - DB2C-A1AA ZF Button Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT
    • 10 pcs - DB2C-A1AA ZF Button Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT
    • 10 pcs - DB2C-A1AA ZF Button Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT

    10 pcs - DB2C-A1AA ZF Button Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT

    10(Allparts)2900429
    ZF
    10 pcs - DB2C-A1AA ZF Button Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, SPDT
    £54.72
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Standard V4 Microswitches (DB2 10A)DB2 rated at 10A 250Vac, ENEC, EN61058Maximum operating temperatures 120°C UL 94V-0Housing material PET/PBT (UL 94V-0)Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85For sealed actuator see stock no. 290-0491 and for IP67 variants see stock no. 320-506Height 11.65mm, Width 20mm, Depth 6.5mmApprovalsENEC, ULApprovalsENEC, UL
    Product Details
    ZF
    10(Allparts)2900429
    DB2C-A1AA
    10 Items

    Data sheet

    Manufacturer
    ZF
    Contact material
    Gold, Silver Alloy
    A-Supplier
    Allparts-UK/15/R-14
    Terminal Type
    Solder
    Maximum Operating Temperature
    +120°C
    Minimum Operating Temperature
    -40°C
    Contact Configuration
    SPDT
    Operating Temperature Range
    -40 - +120°C
    Actuator Type
    Button
    Contact Current Rating
    10.1 A @ 250 V ac
    Mechanical Life
    15000000Operations
