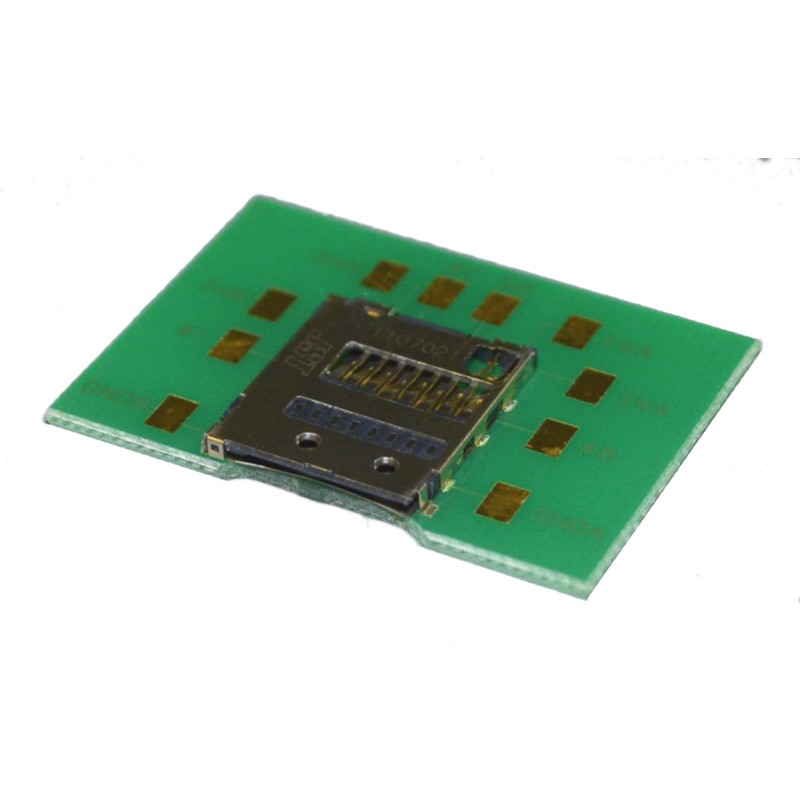

    10 pcs - SDHR-8BRS-K-363-A0-P-ETB(HF)(A) JST 8 Way Micro SD Memory Card Connector With Snap-In Termination
    • 10 pcs - SDHR-8BRS-K-363-A0-P-ETB(HF)(A) JST 8 Way Micro SD Memory Card Connector With Snap-In Termination

    10 pcs - SDHR-8BRS-K-363-A0-P-ETB(HF)(A) JST 8 Way Micro SD Memory Card Connector With Snap-In Termination

    10(Allparts)9060115
    JST
    10 pcs - SDHR-8BRS-K-363-A0-P-ETB(HF)(A) JST 8 Way Micro SD Memory Card Connector With Snap-In Termination
    £40.88
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    JST SDHR Series Reverse Mounting microSD ConnectorSDHR series reverse mounting microSD PCB connector with a space saving design having a mounting height of just 1.45mm. This 1.1mm pitch SDHR microSD PCB receptacle connector has a push-push card insertion and ejection mechanism and also features a card detection switch and wiping function to ensure a good electrical contact. Typical applications for this SDHR series reverse mount microSD card include media file storgae for small compact devices such as mobile phones.Memory Card Connectors
    Product Details
    JST
    10(Allparts)9060115
    SDHR-8BRS-K-363-A0-P-ETB(HF)(A)
    10 Items

    Data sheet

    Manufacturer
    JST
    Dimensions
    13.3 x 15.3 x 1.4mm
    Width
    15.3mm
    Length
    13.3mm
    Contact material
    copper alloy
    Contact plating
    Gold over Nickel
    A-Supplier
    Allparts-UK/15/R-10
    Series
    SDHR
    Maximum Operating Temperature
    +85°C
    Mounting Type
    Surface Mount
    Minimum Operating Temperature
    -25°C
    Housing Material
    Resin
    Number of Contacts
    8
    Gender
    Female
    Termination Method
    Snap-In
    Body Orientation
    Straight
    Number of Rows
    1
