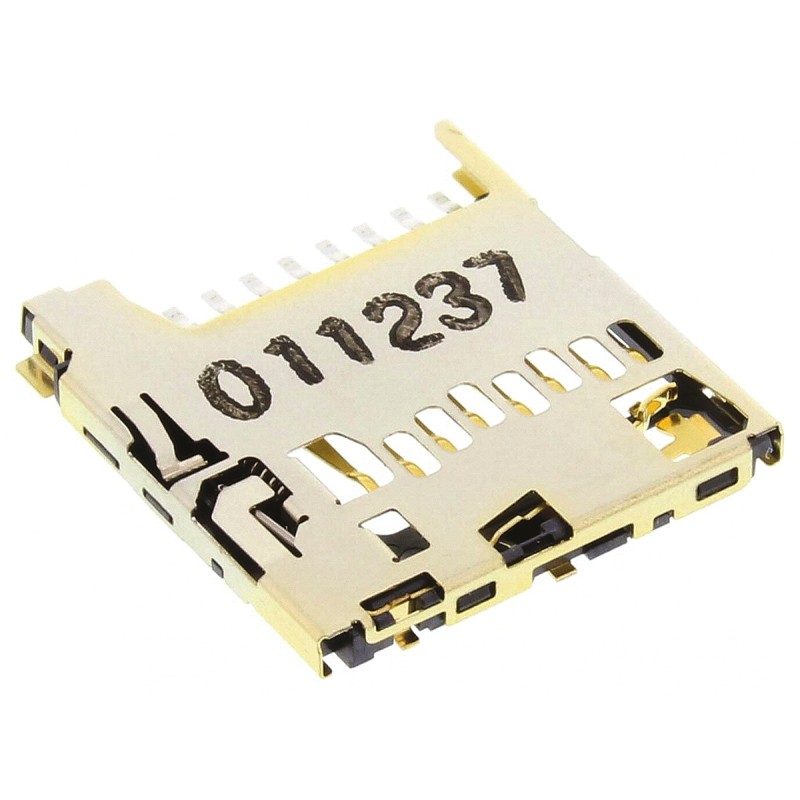

10 pcs - 503398-1892 Molex, 503398-1892 8 Way Push-Push Micro SD Memory Card Connector With Solder Termination

Molex microSD Memory Card Connector - Series 503398 and 504077The Molex 503398 series MicroSD Card Connector is a 1.1 mmm pitch, SMT, Push-Push type with Detect Switch and Anti Fly-Out feature. With a board height of 1.28 mm the 503398 series MicroSD Card Connector provides a very low profile compact design with a clean shell outline. The design of the 503398 series MicroSD Card Connector features: SMT tabs recessed within the outline of the shell, prevention of terminal stubbing, card polarization and anti card fly-out ramp.Molex Memory Card Connector, Gold Contact Plating, Surface Mounting - 503398 Series - 503398-1892Add digital storage and data transfer capabilities to your device in a trice with this memory card connector from Molex. It's made to accommodate a MicroSD card and has a 1.11mm pitch that's ideal for installation into portable devices. As this is a push-push type, you simply slot the card into place and press again to release. You can count on the connector's 8 fatigue-resistant phosphor bronze contacts to shrug off the rigours of frequent use.Features & Benefits• Compact dimensions of 13.1 (L) x 14.05 (W) x 1.28mm (D)• Operates reliably in temperatures between -25°C and +85°C• Anti-fly-out ramp prevents a lost or damaged memory card• Solder termination for easy installationApplications• Consumer electronics• Automotive production• Industrial control componentsHow do I attach this component to my hardware?You can install it directly onto a PCB using surface-mounting technology. This means it takes up less space than its through-hole counterparts.Memory Card Connectors
