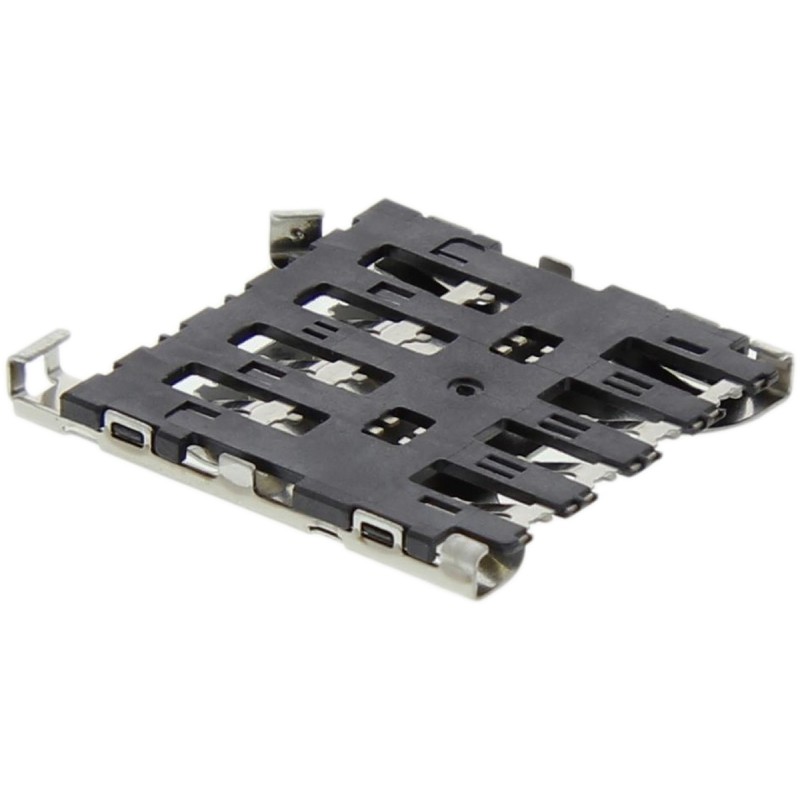

10 pcs - 78723-1001 Molex, 78723 6 Way Right Angle Push/Pull Micro Memory Card Connector With Solder Termination

Molex Push-Pull micro SIM Card Connector - 78723 Series78723 series micro SIM card connector with an ultra-low profile height of just 1.35 mm offering significant vertical PCB space saving. The design of this micro SIM memory card connector features a wide finger area allowing easy removal of the micro SIM card using a push-pull method. This micro SIM memory card connector features an integral shell-spring tab which gives a high normal contact force of 0.30N when the SIM card is inserted. The connector shell incorporates dual angular card polarization features to prevent card misinsertion. These polarization features are also soldered to the PCB giving stability to the connector during card insertion and removal. This 78723 series micro SIM card connector has raised housing walls which provide anti-shorting of the exposed SIM card contact pads against the metal shell. The terminals have a rounded profile for smooth card insertion and have a lead-in design to prevent contact stubbing providing a good electrical connection. The housing of this micro SIM card connector is made from high temperature thermoplastic with a shielded stainless steel cover which provides protection against EMI interference. Retention features on the shell provide a secure retention to the PCB.Features and Benefits• Ultra-low profile height of 1.35 mm• Compact space saving design• Push-pull mechanism with wide finger area for easy card insertion and withdrawal• Integral shell spring tab for high normal contact force of 0.30N• Dual card polarizaton features• Anti-shorting feature• Rounded terminals smooth card insertion• Inner lead terminal design to prevent stubbing• Fully shielded metal covers for EMI protection• PCB retention featuresProduct Application InformationThis ultra-low profile of this micro SIM card connector makes it ideal for use in small portable hand held devices. Applications include ultra-slim smartphones, mobile phones, tablet PCs, PC cards, GSM and UMTS modems and wireless LAN cardsMemory Card Connectors
