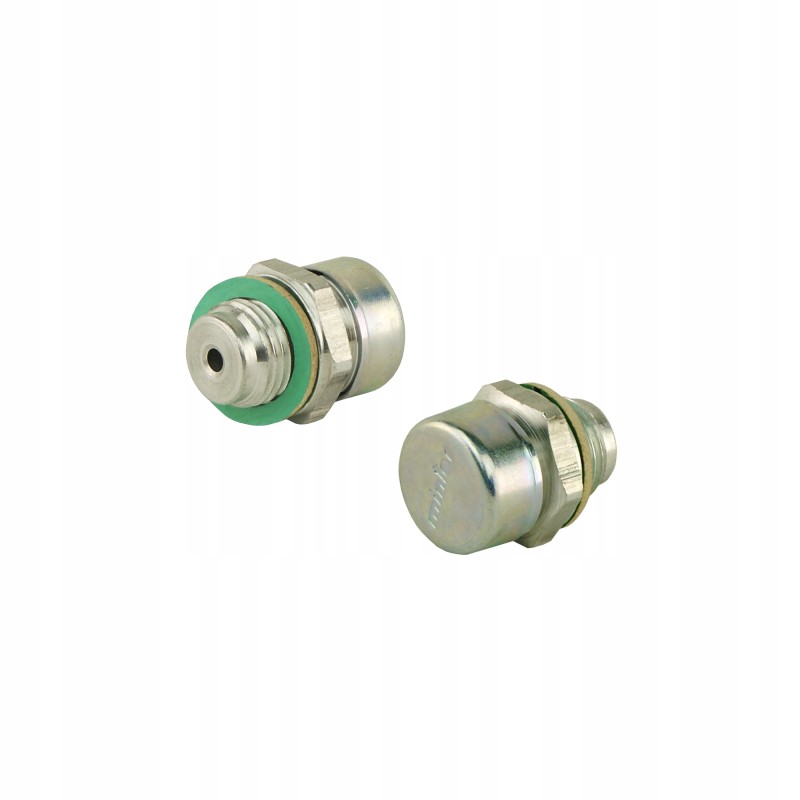

Membrane breather for gearbox thread 1 4

1/4' HYDRAULIC DIAGRAM AIR AIR VENT Production:

Original Italian product of the Mintor brand, symbols: TSFA 1G, 1.34.75.064

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

General purpose air bleeder , in hydraulic systems for bleeding and aerating gears, tanks, actuators, etc.

Helpful data:

BSP 1/4' thread diameter measured with a caliper

Outer diameter [mm]: 12.9 - 13.1

Inner diameter [mm]: 11.4 - 11.9

Technical data:

Type of construction: mushroom, diaphragm

Thread: external inch [BSP] 1/4'

Body material: steel

Maximum working pressure: 12 bar

Operating temperature: -20°C up to +80°C
