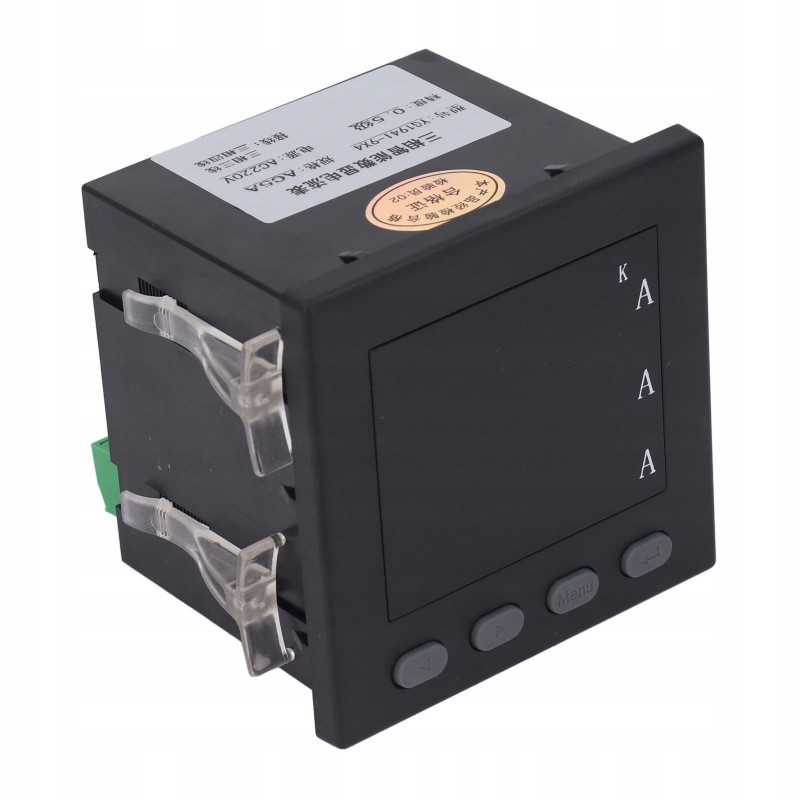

220v 3 phase current meter led display

Feature:1. Multiple functions: 3-phase current can be measured, with programmable measurement, display, alarm, digital communication and analog transmission output functions.

2. LED Digital Display: The current meter adopts large screen LED digital display, with simple pages and clear measurement values, which is clear and intuitive.

3. RS485 function: RS485 communication is adopted to support data sensing, remote reading, electricity accounting, unified management and other functions.

4. Durable materials: silicone wrenches are used to optimize the problem of fixing failure, and the flame-retardant ABS shell ensures safe and reliable operation.

5. Wiring Protection: The meter is protected by a rear safety cover to avoid exposure of equipment wiring and ensure the safety of instrument wiring.

6. Wide Application: Used to measure electricity in substations, distribution automation, intelligent buildings, etc., with high accuracy, good stability.

Specification: Item type: 3-phase current meter

Material: ABS, silicone

Supply voltage: 220V

Accuracy: Class 0.5

Wiring: 3-phase 3-wire, 3-phase 4-wire

How to use:1. Open the size holes in the fixed switch cabinet

2. Take out the instrument, loosen the screws and remove the mounting bracket

3. The instrument is inserted into the mounting hole from the front

4. Insert the instrument mounting bracket and tighten the screws to fix the instrument

Package List: 1 x Current Meter
