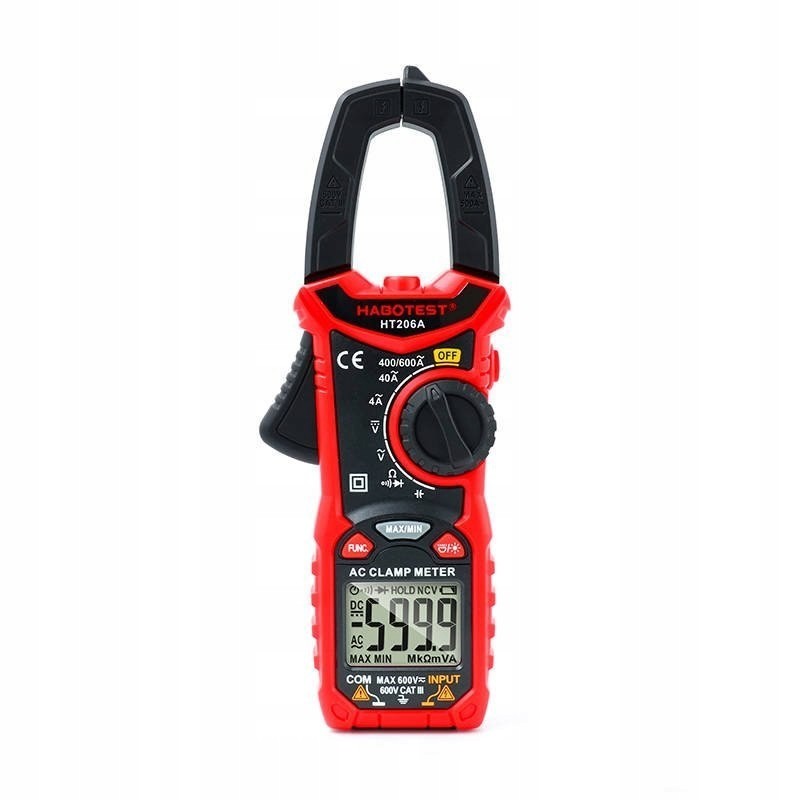

Habotest HT206a digital clamp meter

Habotest HT206A digital clamp meter

The functional Habotest clamp meter guarantees precise measurement, the results of which are displayed on a clear, backlit LCD screen. The jaw size is up to 26 mm, which allows for convenient operation of the device. HT206A is also equipped with a flashlight that makes it easier to work in dark rooms.

Measures various parameters

With this universal meter you can check the value of many different parameters. Using the HT206A, you will measure AC voltage, AC current and resistance, among other things. But that's not all! You can also easily check continuity and check the true RMS value.

Clear, practical display

The meter is equipped with an LCD display with backlight in 2 colors. You will find there not only measurement results, but also, for example, a low battery indicator. Thanks to this, you can use the HT206A conveniently. Moreover, the backlight will turn orange when the measured voltage exceeds 80 V and the current exceeds 3 A.

Simple operation in all conditions

The built-in flashlight provides bright lighting, which means you can also work in dark places without any problems. Operation of the device is also made easier by intuitive buttons, which allow you to quickly and conveniently select a function, use the MAX/MIN measurement option, and turn the light on or off. An additional advantage of the meter is the option of storing data.

Specification

Manufacturer Habotest Model HT206A HT206D DC voltage measurement range 400 mV/4 V/40 V/400 V/600 V ±(0.5%+5) 600 mV/6 V/60 V/600 V ±(0.5%+ 5) AC voltage measurement range 4 V/40 V/400 V/600 V ±(1.0%+5) 6 V/60 V/600 V ±(0.8%+5) DC current measurement range Not applicable 60 A/600 A ±(2.5%+5) AC current measurement range 4 A/40 A/600 A ±(2.5%+8) 60 A/600 A ±(2.5%+5) Measurement range resistance 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1.0%+5) 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ ±(1.0% +5) Capacitance measurement range 4 nF/40 nF/400 nF/4 μF/40 μF/400 μF/4 mF ±(4.0%+5) 10 nF/100 nF/1 μF/10 μF/100 μF/ 1 mF/10 mF/100 mF ±(4.0%+3) Frequency measurement range Not applicable 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3 ) Fill factor measurement range N/A 1%-99% ±(3.0%+3) Temperature measurement range N/A -40°C-1000°C ±(1.0%+2), -40°F-1832 °C ±(1.0%+2) Number of counts 4000 6000 Range selection Automatic Automatic Continuity testing Yes, audible and light alarm Yes, audible and light alarm Diode testing Yes Yes Data storage Yes Yes NCV No Yes, audible and light alarm Backlight Yes Yes Flashlight Yes Yes DCA Zero No Yes Low Battery Indicator Yes Yes Auto Power Off Yes Yes True RMS Yes Yes LPF No Yes MAX/MIN Yes Yes LowZ No Yes Power 2x AAA 1.5V battery(included) 2x AAA battery 1.5V(included) Weight Approx. 260 g Approx. 260 g Dimensions 193x73x34 mm 193x73x34 mm Jaw size ∅26x44 mm ∅26x44 mm Safety EN61010-1 -2-030, EN61010-2-033, EN61326-1 CAT III 600V EN61010-1 -2-030, EN61 010-2-033, EN61326-1 CAT III 600V

EAN: 5907489606646

Habotest
