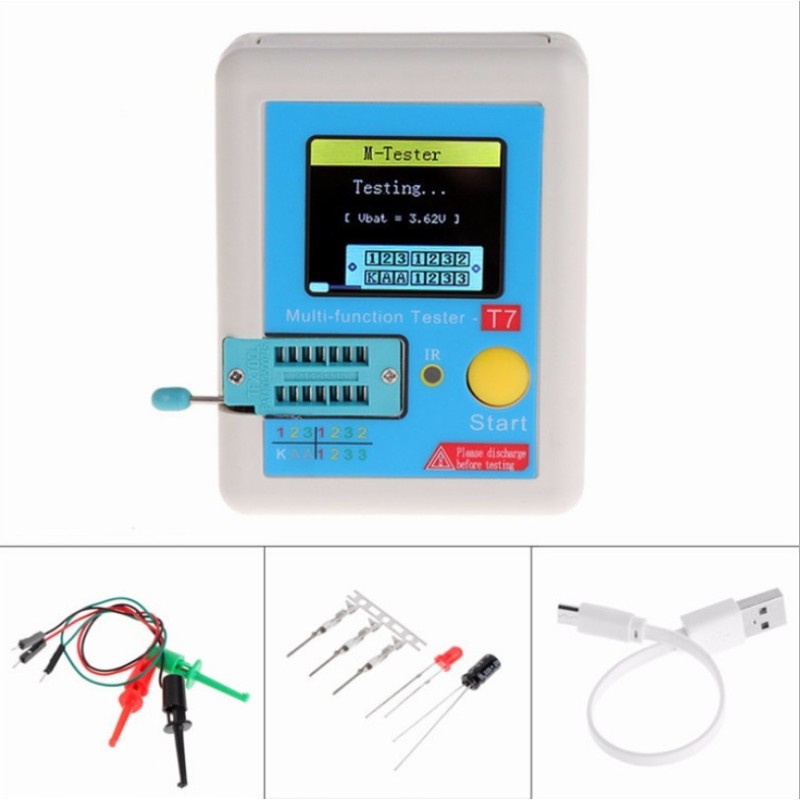

LCR-T7 Multifunction Electronic Component Tester

Description:

3.5inch Colorful Display Multi-functional TFT Backlight Transistor Tester for Diode Triode Capacitor Resistor Transistor LCR ESR NPN PNP MOSFET

Features:

It can be widely used to detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.

It can also be used to detect infrared wave forms.

It also can detect zener diode and has the function of self-calibration.

After detection, align the infrared remote control with the 'IR' light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Not like the usual black and white display, this detector will show results in color.

Multifunctional test instrument with color display

1. Can measure three tubes, two tubes, resistance, capacitance, inductance, thyristors, field lamps, voltage regulator tubes, double diodes, light-emitting diodes, etc.

2. Can measure voltage!

3. Built-in lithium battery, long battery life

Instruction:

@ Please use external 5V power supply or mobile phone USB power adapter to charge

@ The indicator light is red to indicate that charging is in progress, and the indicator light is green to indicate that Charging has been completed

Reminder: The charging input voltage is 6V, do not use it with overvoltage, otherwise the tester will be damaged and the battery may explode

4. IR decoding function

Point the IR remote control at the 'IR' test hole of the tester and press the remote control button

If the tester decodes successfully, the user code and data code will be displayed, and the corresponding IR wave will be displayed.

If the decoding fails or it cannot be decoded, the user code and data code will not be displayed. At this time, if you are on the tester interface, you cannot enter the infrared decoding interface, if you are on the infrared decoding interface, the last successful decoding information will still be displayed

Dot in The upper right corner is used to indicate whether the infrared data from the remote control is received, red means the infrared data is received, and blue means decoding is successful

5. Automatic calibration

Short-circuit the three test sockets, short press the multi-function button and the tester will automatically calibrate.

Once you disconnect the short-circuit wire as prompted during the calibration process, no other operations are required.

Specifications:

Display: 3.5inch TFT Screen

Diode Range : <, 4.5V

Zener Diode:Transistor Detect Area: 0.01-4.5V

Zener Diode Detect Area: 0.01-30V

Triac Range: IGT <, 6mA

Capacitance: 25pF-100mF

Resistor: 0.01-50MΩ

Inductance: 0.01 mH-20H

Battery: 0.1-4.5V

Power Mode: Rechargeable Lithium Battery (INCLUDED)

Item Size: 8.8 x 8 x 2.8cm / 3.47 x 3.15 x 1.10in

The set includes: LCR-T7 multi-function tester,

Cable USB,

User manual in Polish.
