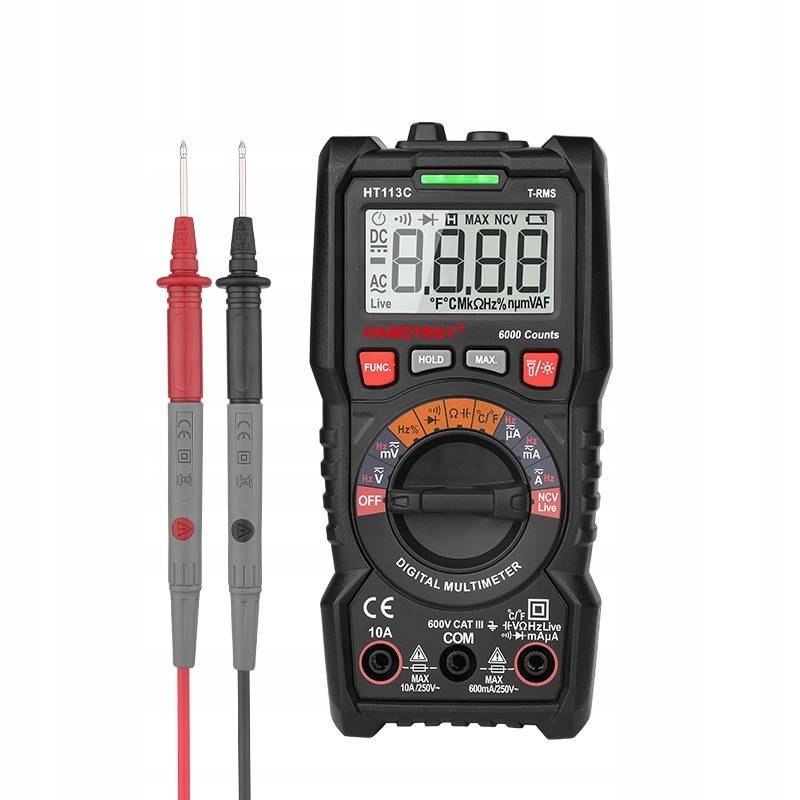

Habotest HT113C digital universal multimeter

Equip yourself with a light and handy Habotest HT113C digital universal multimeter, which will allow you to conveniently and safely measure voltage, current and resistance. Habotest HT113C is equipped with a practical stand, thanks to which you can put the product on a shelf, its advantages are also the NCV function, the ability to test diodes and a flashlight. The casing made of soft material is pleasant to the touch, but also extremely durable, resistant to wear and falls.

Many useful functions

The Habotest HT113C digital universal multimeter offers a number of functions that are perfect for DIY and electrical work. The device allows you to measure DC and AC voltage, DC and AC current and resistance, and also allows you to test diodes and offers the NCV function. Special buttons allow you to conveniently change functions, while the clear display provides access to the necessary results. The number of counts is 6000, in addition, the multimeter allows you to measure continuity, fill factor and data storage.

Well-thought-out design

The device has a handy design and weighs only approx. 220 g. Thanks to the use of soft material, the device's casing is pleasant to the touch and is highly resistant to wear and falls. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the support you can place it, for example, on a table. Another advantage is the low battery indicator and backlight.

Manufacturer Habotest Model HT113 HT113B HT113C Voltage measurement range DC 200mV/2V/20V/200V/600V ±(0.5%+3) 400mV/4V/40V/400V/600V ±(0.5%+3) 600mV/6V/ 60V/600V ±(0.5%+3) AC voltage measurement range 200V/600V ±(1.0%+3) 400mV/4V/40V/400V/600V ±(1.0%+3) 600mV/6V/ 60V/600V ±(1.0%+3) DC current measurement range 20mA/ 200mA ±(1.2%+3) 10A ±(2.0%+3) 400uA/4000uA/40mA/400mA ±(1.2 %+3) 10A ±(2.0%+3) 600uA/6000uA/60mA/600mA ±(1.2%+3) 10A ±(2.0%+3) AC current measurement range - 400uA/4000uA/40mA /400mA ±(1.5%+3) 10A ±(2.0%+3) 600uA/6000uA/60mA/600mA ±(1.5%+3) 10A ±(2.0%+3) Resistance measurement range 200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ ±(1.0%+3) 400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ ±(1.0%+3) 600ꭥ/6kꭥ/60kꭥ/600 kꭥ/6Mꭥ/ 60Mꭥ ±(1.0%+3) Capacitance measurement range - - 10nF/100nF/1µF/10µF/100µF/1mF/10mF ±(4.0%+5) 100mF ±(5.0%+5) Frequency measurement range - - 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz ±(1.0%+3) Duty cycle measurement range - - 1%~99% ±(3.0%+3) Live Test No No Yes NCV No Yes Yes Diode Testing Yes Yes Yes Continuity Yes Yes Yes Counts 2000 4000 6000 Data Storage Yes Yes Yes True RMS No Yes Yes Measurement Bandwidth 40~400Hz 1kHz 1kHz Low Battery Indicator Yes Yes Yes Auto Power Off Yes Yes Yes Backlight Yes Yes Yes Flashlight No Yes Yes Power supply 2x 1.5V AAA batteries 2x 1.5V AAA batteries 2x 1.5V AAA batteries Safety EN61010-2-030 EN61010-2-033 CAT III 600V EN61010-2-030 EN61010-2-033 CAT III 600V EN6101 0 -2-030 EN61010-2-033 CAT III 600V Weight Approx. 220 g Approx. 220 g Approx. 220 g Dimensions 151 x 75 x 48 mm 151 x 75 x 48 mm 151 x 75 x 48 mm

EAN: 5907489609388

Habotest
