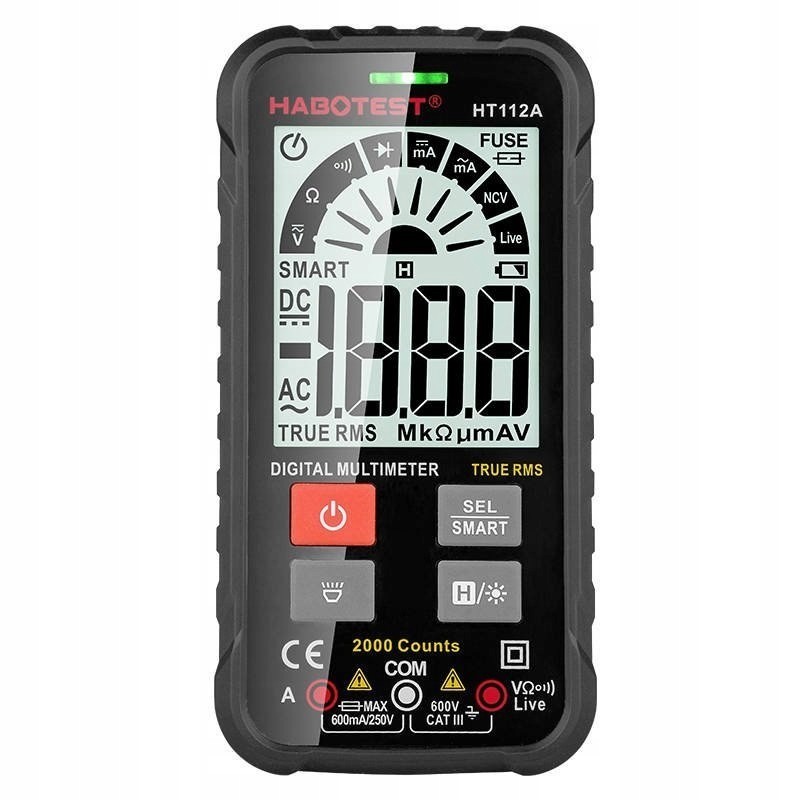

Habotest ht112a true rms digital universal multimeter

Habotest HT112A digital multimeter

HT112A is an ultra-thin, next-generation intelligent multimeter. Equipped with a large display and silicone buttons - it is simple and convenient to use. It ensures precise measurement of various parameters. Compact and light - it also has an LED flashlight that allows you to work in dark places. It requires 2 CR2032 3V batteries to power it.

Perfectly thought-out design

This practical multimeter has been designed to provide you with maximum comfort of use. Small and handy - its thickness is only 1.9 cm. The clear display will provide you with convenient access to all important information. Large silicone buttons make the device easier to operate.

Enormous possibilities

The Habotest multimeter is characterized by incredible precision. It accurately measures, among others, AC and DC voltage, resistance and current. It also recognizes cable activity. With it you can test diodes, check continuity and true RMS value. It also enables non-contact voltage detection (NCV). HT112A also has SMART function which ensures intelligent detection.

User-friendly

This is not the end of the advantages of the multimeter. The built-in LED flashlight will provide you with bright lighting when working in dark rooms. The soft protective case not only protects the device against damage, but also facilitates its transportation and storage. Replacing the HT112A battery is child's play - it will not cause you any problems.

Manufacturer Habotest Model HT112A HT112B Voltage measurement range DC 2 V/30 V/200 V/600 V ±(0.5%+3) 60 mV/600 mV/6 V/60 V/600 V ±(0.5%+ 3) AC voltage measurement range 2V/30V/200V/600V ±(1.0%+3) 60mV/600mV/6V/60V/600V ±(1.0%+3) Range DC current measurement 20 mA/200 mA/600 mA ±(1.2%+5) 6000 uA/60 mA/600 mA ±(1.2%+5) AC current measurement range 20 mA/200 mA/600 mA ± (1.5%+5) 6000 uA/60 mA/600 mA ±(1.5%+5) Resistance measurement range 200 ꭥ/2 kꭥ/20 kꭥ/200 kꭥ/2 Mꭥ/20 Mꭥ ±(1.0 %+5) 600 ꭥ/6 kꭥ/60 kꭥ/600 kꭥ/6 Mꭥ/60 Mꭥ, ±(1.0%+5) Capacitance measurement range Not applicable 6 nF/60 nF/600 nF/6 μF/60 μF /600 μF/6 mF/60 mF ±(4.0%+5) Frequency measurement range N/A 10 Hz/100 Hz/1000 Hz/10 kHz/100 kHz/1000 kHz/10 MHz ±(1.0%+ 5) Duty cycle measurement range Not applicable 1%~99%, ±(3.0%+5) Number of counts 2000 6000 Range selection Automatic Automatic SMART function Yes Yes Automatic identification of output current Yes Yes Live test Yes Yes NCV Yes Yes Diode testing Yes Yes Continuity Yes Yes Data Storage Yes Yes True RMS Yes Yes Blown Fuse Indication Function Yes Yes Low Battery Indicator Yes Yes Auto Power Off Yes Yes Backlight Yes Yes Flashlight Yes Yes Power 2x CR2032 3V Battery (included) 2x CR2032 Battery 3 V (included) Safety EN61010-2-030, EN61010-2-033, EN61326-1 CAT III 600V EN61010-2-030, EN61010-2-033, EN61326-1 CAT III 600V

EAN: 5907489606660

Habotest
