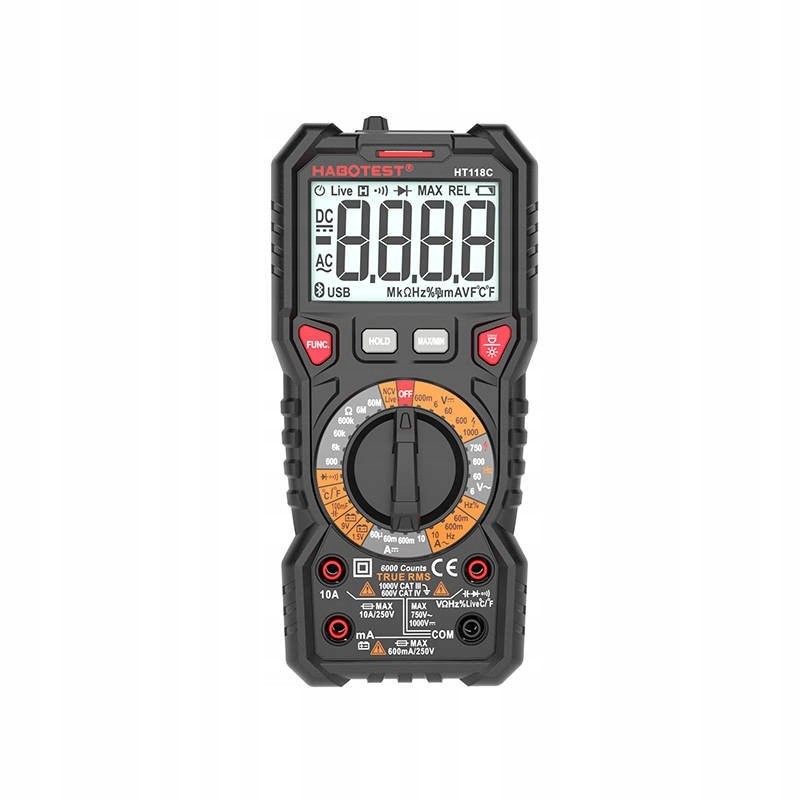

Digital multimeter with flashlight habotest ht118c true rms ncv battery testing

Habotest HT118C digital multimeter with flashlight, True RMS, NCV, battery testing Habotest HT118C universal meter

The Habotest universal meter is an irreplaceable tool that ensures precise measurement of parameters such as voltage, continuity and temperature, among others. The backlit display makes it easy to use. The built-in flashlight will also allow you to work in dark rooms, and thanks to a special stand, you can place the device stably on a flat surface. The product is also equipped with NCV sensors enabling non-contact voltage measurement. The meter supports manual range selection.

Measures many different parameters

HT118C has many useful features. With it you can measure, among others, AC and DC voltage, capacity, and temperature in the range of -40°C-1000°C. You will also check whether the wire is live and check for continuity. However, this is not the end of the possibilities! The meter also allows for non-contact measurement of NCV voltage.

Clear display and practical backlight

Operating the device is very simple. Measurement results are displayed on a clear LCD screen with double backlight. If the voltage exceeds 80 V or the current exceeds 1 A, its color will change to orange. Moreover, the meter has an LED indicator of the input jack port.

Additional features

Habotest HT118C also supports other useful functions, such as max/min or diode testing. You can also use it to check the true RMS value. It also allows you to store data. Moreover, it offers a battery testing function (1.5/9 V).

Long working time

2 AA batteries are required to power the device. What's more, you don't have to worry about premature discharge of the meter. Even if you forget to turn it off, it will automatically stop working after a while of inactivity. HT118C will think about everything for you!

Well-thought-out design

The device is light and handy - it fits perfectly in your hand and ensures comfort of use. Thanks to the built-in flashlight, you can use it conveniently and safely even in poorly lit rooms. The meter is also equipped with a foldable stand at the back, which allows it to be placed stably on a table or shelf.

Manufacturer Habotest Model HT118A HT118C DC voltage (range + accuracy) 600 mV ±(0.5%+3),

6/60/600/1000V ±(0.5%+3)

600 mV/6V/60V/600V/1000V ±(0.5%+3) AC voltage (range + accuracy) 600 mV ±(1.0%+5),

6/60/600/750V ±(1.0%+5)

6/60/600/750 V ±(1.0%+5) DC current (range + accuracy) 600 uA/6000 uA/60 mA/600 mA ±(0.8%+3),

6/10 A ±(1.2%+3)

60uA/60mA/600mA ±(0.8%+3),

10 A ±(1.2%+3)

AC current (range + accuracy) 600 uA/6000 uA/60 mA/600 mA ±(1.0%+3),

6 A/10 A ±(1.5%+3)

60/600 mA ±(1.0%+3),

10 A ±(1.5%+3)

Resistance (range + accuracy) 600 ꭥ/6 kꭥ/60 kꭥ/600 kꭥ/6 Mꭥ/60 Mꭥ ±(0.8%+3) 600 ꭥ/6 kꭥ/60 kꭥ/600 kꭥ/6 Mꭥ/60 Mꭥ ± (0.8%+3) Capacity (range + accuracy) 10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF ±(4.0%+3),

100 mF ±(5.0%+5)

10 nF/100 nF/1 μF/10 μF/100 μF/1 mF/10 mF ±(4.0%+3),

100 mF ±(5.0%+5)

Frequency (range + accuracy) 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz ±(1.0%+3) 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/ 1 MHz/10 MHz ±(1.0%+23) Duty factor (range + accuracy) 1-99% ±(1.0%+2) 1-99% ±(1.0%+2) Temperature (range + accuracy) -40°C-1000°C ±(1.0%+3),

-40°F-1832°F ±(1.0%+3)

-40°C-1000° ±(1.0%+3),

-40°F-1832°F ±(1.0%+3)

Counts 6000 6000 Range Selection Auto Manual LCD Display LCD Bar Graph Yes No Live test Yes, audible and light alarm Yes, audible and light alarm NCV Yes, audible and light alarm Yes, audible and light alarm Diode Testing Yes Yes Continuity Yes, audible alarm and light Yes, sound and light alarm Max/min Yes Yes Data storage Yes Yes True RMS value Yes Yes Frequency response 1 kHz 1 kHz Battery testing (1.5V/9V) No Yes Low battery indicator Yes Yes Auto power off Yes Yes Dual display backlight Yes Yes Input jack LED indicator Yes Yes Flashlight Yes Yes Power supply 2x AA battery (included) 2x AA battery (included) Weight Approx. 350 g Approx. 350 g Dimensions 188x88x58 mm 188x88x58 mm Safety EN61010-1,-2-030,

EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

EN61010-1,-2-030,

EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

EAN CODE: 5907489606615
