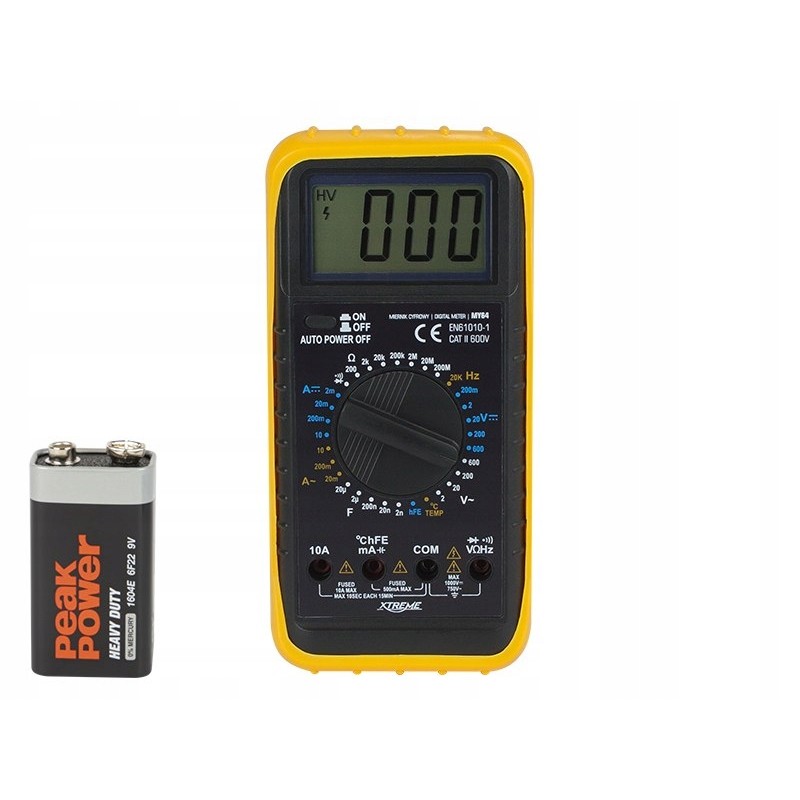

50 164 digital meter my 64 xtreme max 20uf

The MY-64 XTREME digital meter is a product that guarantees accuracy and precision. A large and clear LCD display ensures correct reading of the results. The materials used in the production of the meter are of high quality, which translates into the durability of the product and its long use.

Comfortable use

A plastic support built into the case allows you to position the device in a convenient way for the user, without the need to constantly hold the meter in your hand - it will definitely make it easier it involves various types of manual work, and reading the measurement results will ensure an extremely readable and expressive LCD screen. Additionally, the removable rubber cover will protect the device against mechanical damage and at the same time protect the user against electric shock.

Variety of applications

The meter is perfect not only for professional workshop workers, but also for electronics enthusiasts. The device allows you to measure current in batteries, in home sockets or wires in hobby electronics, as well as in other electronic devices.

In the set:

Meter with a clear LCD display

Rubber protection against mechanical damage and electric shock with a built-in plastic support

Indispensable test leads and plugs

User manual

Specification:

Power supply: 9V battery

Screen: LCD, range 1999

Sampling frequency: 2 times per second

Measurement method: double integral A/D converter

Signaling of exceeding the range : only the number "1" on the screen

Polarity indication: "-" is displayed for negative

Operating temperature: 0 degrees C ~ 40 degrees C

Storage temperature: -10 degrees C ~ 50 degrees C

Discharged battery indication: battery icon on the screen

Dimensions: 190x87x35mm

Weight with battery: 223g with battery

DC voltage measurement: 0V - 600V in 5 ranges

AC voltage measurement: 0V - 600V in 4 ranges

DC current measurement: 2mA - 10A in 4 ranges

AC measurement: 20mA - 10A in 3 ranges

Resistance measurement: 200 - 200MΩ in 7 ranges

Capacitance measurement: YES

Frequency measurement: YES

Temperature measurement: YES

HFE measurement transistor .+diode testing: YES

Acoustic continuity tester: YES

Basic accuracy: +/- (0.5% + 2 digits)
