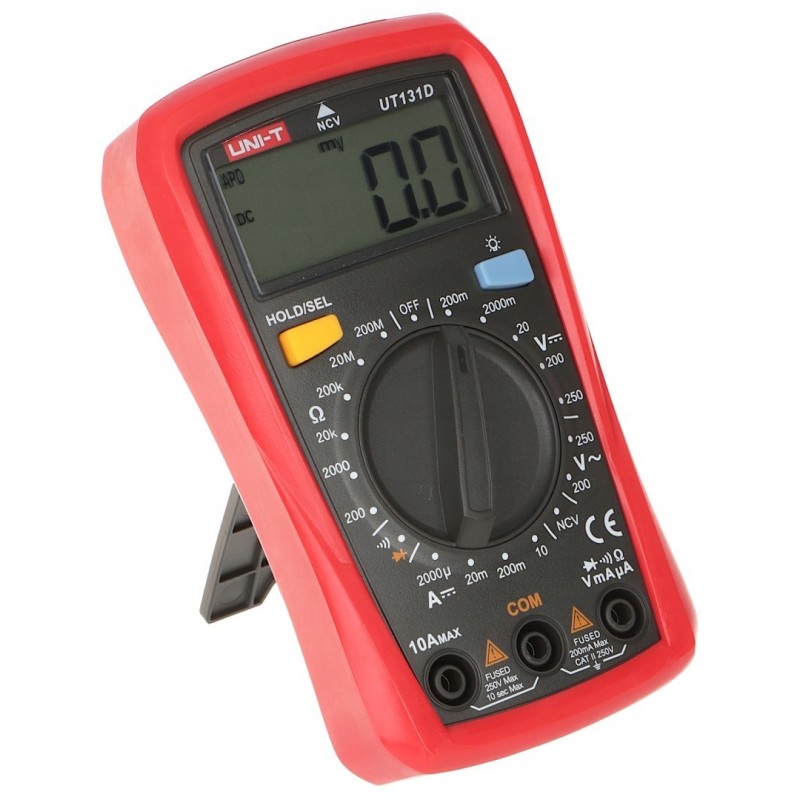

Universal meter ut 131d uni t

UNIVERSAL METER UT-131D UNI-T UT-131D is a universal digital meter used to measure: voltage, current, resistance, diodes

DC voltage measurement: 200 mV ± (0.7% + 3) @ 0.1 mV , 2000 mV ± (0.5% + 2) @ 1 mV , 20 V ± (0.7% + 3) @ 0.01 V , 200 V ± (0.7% + 3) @ 0.1 V , 250 V ± (0.7% + 3) @ 1 V AC voltage measurement: 200 V ± (1.2% + 3) @ 0.1 V , 250 V ± (1.2% + 3) @ 1 V DC current measurement : 2000 µA ± (1.0% + 2) @ 1 µA , 20 mA ± (1.0% + 2) @ 0.01 mA , 200 mA ± (1.0% + 2) @ 0.1 mA , 10 A ± (1.2% + 5) @ 0.01 A AC current measurement: Resistance measurement: 200 Ω ± (1.0% + 2) @ 0.1 Ω , 2 kΩ ± (0.8% + 2) @ 0.001 kΩ , 20 kΩ ± (0.8% + 2) @ 0.01 kΩ , 200 kΩ ± (0.8% + 2) @ 0.1 kΩ , 20 MΩ ± (1.2% + 3) @ 0.01 MΩ , 200 MΩ ± (5.0% + 10) @ 0.1 MΩ Capacitance measurement: Inductance measurement: Frequency measurement: Temperature measurement: Automatic change measurement ranges: hFE: Diode test: Circuit continuity signaling: Checking logical states TTL: RS-232: Selected features:

NCV - electric field detection function

Large, readable LCD display with backlight

Hold - stopping the meter reading

Low battery indicator

Aesthetic and solid workmanship

Power supply: 2 x 1.5V batteries, type AAA/LR03 - included Weight: 0.21 kg Dimensions: 134 x 77 x 47 mm Manufacturer / Brand: UNI-T Warranty: 2 years

Instructions PL

Instructions EN

Manufacturer: UNI-T
