Habotest habotest ht124a digital universal multimeter

Habotest Digital universal multimeter Habotest HT124A+

26272-0

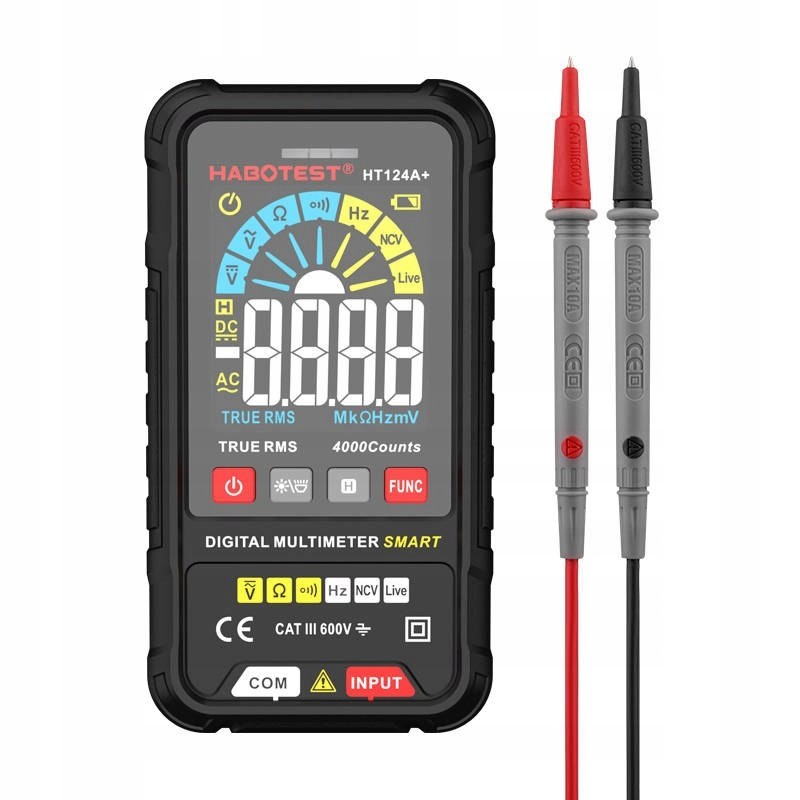

Habotest HT124A+ digital universal multimeter

The Habotest HT124A+ digital multimeter is a multifunctional device that is suitable for electrical work. The product allows you to measure voltage, resistance and many other values. The multimeter has a clear display that allows you to conveniently read measurement results, and is also equipped with a flashlight and practical buttons.

Many useful functions

The Habotest HT124A+ digital universal multimeter is a handy device that surprises with the multitude of its possibilities. It allows you to measure with high precision, among others: AC and DC voltage, resistance, continuity and frequency. In addition, it offers Live Test functionality, enables non-contact voltage detection (NCV) and much more. Importantly, the multimeter has practical buttons that allow you to select the function efficiently.

Well-designed

Thanks to its small size (130 x 70 x 23 mm), the device fits well in the hand and ensures high comfort of use. It is powered by two AAA batteries (available separately), which you can easily remove and replace. The housing made of soft material is pleasant to the touch, provides effective insulation and is resistant to falls.

Included

Digital universal multimeter

Measuring leads

User manual

Manufacturer

Habotest

Model

HT124A+

HT124B+

DC voltage measurement range

400mV/4V/40V/400V/600V

400mV/4V/40V/400V/600V

AC voltage measurement range

4V/40V/400V/600V

4V/40V/400V/600V

Resistance measurement range

400ꭥ/4kꭥ/ 40kꭥ/400kꭥ/4Mꭥ/40Mꭥ

400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ

Capacitance measurement range

-

4nF/40nF/400nF/4µF/40µF/400µF/4mF

Frequency measurement range

4Hz /40Hz/400Hz/ 4kHz/40kHz

4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz

Live Test

Yes, sound and light alarm

Yes, sound and light alarm

NCV

Yes, sound and light alarm

Yes, sound and light alarm

Diode Testing

-

Yes, 0~2V

Continuity

<,50ꭥ<,/strong>,

<,50ꭥ<,/td>,

Number of Counts

4000

4000

Data Storage

Yes

Yes

True RMS Value

Yes

Yes

Low battery indicator

Yes

Yes

Auto power off

Yes

Yes

Backlight

Yes

Yes

Flashlight

Yes

Yes

Power supply

2x 1.5V AAA battery

2x 1.5V AAA battery

Safety

EN61010-1 , CAT III 600V

EN61010-1, CAT III 600V

Weight

125 g

125 g

Dimensions

130 x 70 x 23 mm

130 x 70 x23 mm
