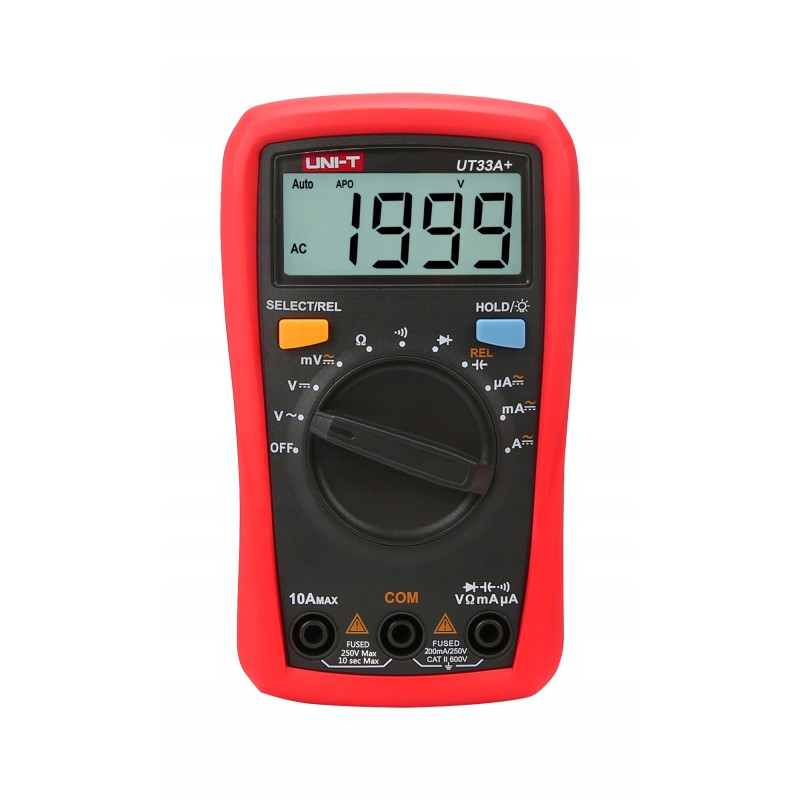

Uni t ut33a universal meter

MEASURING RANGES

DC voltage: 200 mV / 2000 mV / 20 V / 200 V / 600 V ±(0.5%+2)

AC voltage: 200 mV / 2 V / 20 V / 200 V / 600 V ±(0.7%+3)

DC current intensity: 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1%+2)

AC current: 200 µA / 2000 µA / 20 mA / 200 mA / 2 A / 10 A ±(1.2%+3)

Resistance: 200 Ohm / 2000 Ohm / 20 kOhm / 200 kOhm / 20 MOhm / 200 MOhm ±(0.8%+2)

Capacity: 2 nF / 20 nF / 200 nF / 2 µF / 20 µF / 200 µF / 2 mF ±(4%+8)

Diode test

Checking the continuity of the circuit

ADDITIONAL FEATURES

Automatic change of measurement ranges

Relative measurement function (applies to capacity measurement only)

Freeze the last indication

Low battery indicator

Maximum reading: 2000

Backlit LCD screen

GENERAL FEATURES

DC voltage input impedance: approximately 10 MOhm

Power supply: battery 2x 1.5 V battery (R03)

Display size: 48 x 16 mm

Product dimensions: 134 x 77 x 47 mm Product weight: 206 g

Accessories: Batteries, test leads, holster
