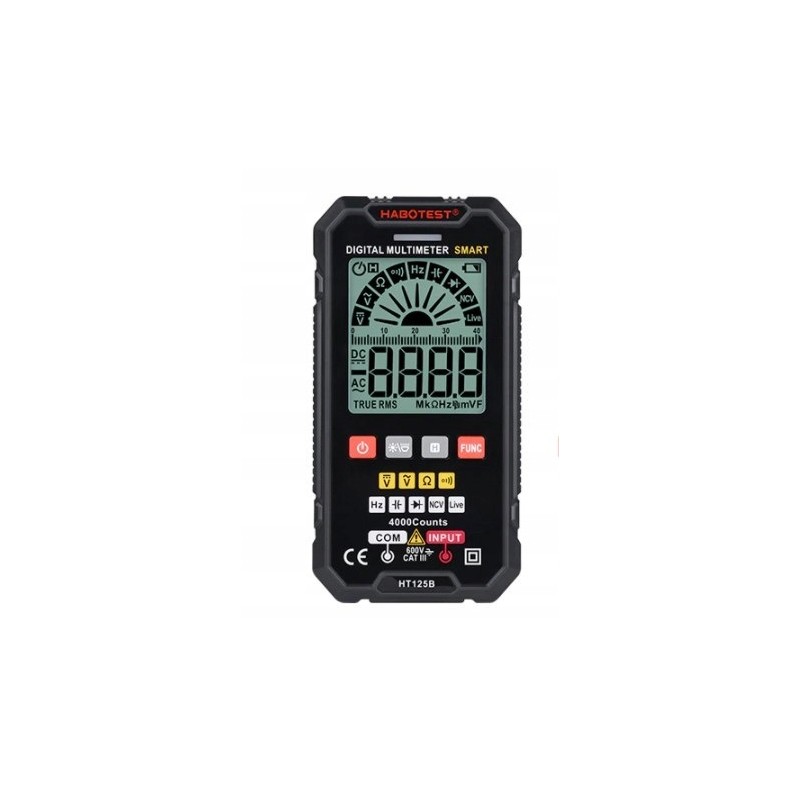

Habotest HT125B digital universal multimeter

Habotest HT125B universal multimeter

HT125B is an intelligent and durable multimeter from Habotest. It is characterized by high measurement precision, which means you can also use it outdoors. Equipped with a large display and silicone buttons - it is simple and convenient to use. Compact and light - it also has an LED flashlight that allows you to work in dark places. It requires two 1.5 V AAA batteries to power it. However, they are not included in the set and must be purchased separately. You can use it to measure voltage, resistance, capacity, etc.

Convenience of use

The multimeter has been designed to provide you with maximum comfort of use. Small and handy - its thickness is only 19 mm. The large display allows convenient access to all important information. Additionally, silicone buttons make the device easier to operate.

Functional and reliable

The Habotest multimeter is characterized by incredible precision. It accurately measures, among others, AC and DC voltage and current, resistance and capacity. You can also check cable activity. With it you can test diodes, check continuity and true RMS value. It also enables non-contact voltage detection (NCV). Use the arrows to change the device's operating mode, then the LED indicator around the input jack port will turn green.

User-friendly

This is not the end of the advantages of the multimeter. The built-in LED flashlight will provide you with illumination when working in dark rooms. The soft protective case not only protects the device against damage, but also facilitates its transportation and storage. Replacing the HT125B battery is quick and simple, so it won't cause you any problems.

Manufacturer Habotest Model HT125A HT125B DC voltage measurement range 400mV/4V/40V/400V/600V 400mV/4V/40V/400V/600V AC voltage measurement range 4V/40V/400V/600V AC 4V/40V/400V/600V Resistance measurement range 400ꭥ /4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ 400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mkꭥ Capacitance measurement range - 4nF/40nF/400nF/4µF/40µF/400µF/4mF Frequency measurement range 40H z/400Hz/4kHz/40kHz 40Hz/ 400Hz/4kHz/40kHz/400kHz/4MHz Live Test Yes, audible and light alarm Yes, audible and light alarm NCV Yes, audible and light alarm Yes, audible and light alarm Diode Testing Yes, 0~2V Yes, 0~2V Continuity < ,50ꭥ <,50ꭥ Counts 4000 4000 Data Storage Yes Yes True RMS Yes Yes Low Battery Indicator Yes Yes Auto Power Off Yes Yes Backlight Yes Yes Flashlight Yes Yes Power 2x 1.5V AAA Battery 2x 1.5V AAA Battery Safety EN61010-1 , CAT III 600V - Weight 125 g - Dimensions 126 x 66 x 19 mm -

EAN: 5907489607780
