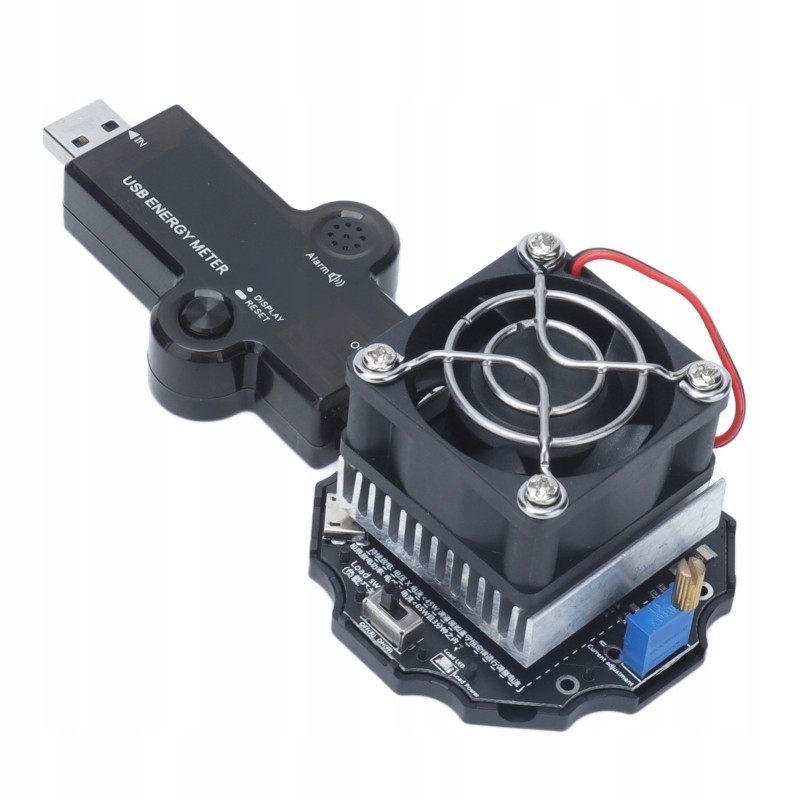

Bluetooth USB tester voltmeter ammeter detector capacity 6z

Feature:1. Multiple detection: real-time detection of charger output voltage, current, power, as well as the power bank's total internal capacity and data line charging speed.

2. IPS Color LCD Screen: Adopt high resolution IPS color LCD display, 160 degree wide viewing angle, high brightness and long service life.

3. With power-off storage function: capacity and energy data can be stored when the mobile power is turned off, which is convenient for viewing and testing later.

4. Using thermistor sensor: Using high-accuracy thermistor sensor, it can measure the ambient temperature (without powering the load) and measure the real-time operating temperature of the tester.

5. Power-off Protection: Automatic power-off and timer-off when the equipment is full is the basic function of the product, which is safer to use.

Specification:Item Type: USB Bluetooth Tester

Material: ABS

Voltage measurement range: 3.60 V-32.0V

Current measurement range: 0.00-5.10A

Capacity accumulation range: 0-99999mAh

Accumulated power range: 0-999999mWh

Power measurement range: 000.00-150, 00W

Impedance measurement range: 1-999.9 Ω

Temperature measurement range: 0-80℃

Measurement time: 999 hours 59 minutes 59 seconds

Input interface: Type C, Micro USB, USB

Setting Timed charging reminders: 24 hours countdown of any set value

USBD+ voltage range: 0V-2.99V

USBD-voltage range: 0V-2.99V

Mobile phone charging parameters: Refresh time: >, 500ms/times

Measurement speed: about 0.5/s

Alarm method: siren sound

Display type: Micro Power LCM LCD module with white font, display in Chinese and English

Product size: approx. 77 x 45 x 16 mm / 3 x 1.8 x 0.6 inch

Self-consumption current: Operating temperature: -10-+60℃

Operating humidity: 10-80 (non-condensing)

Operating pressure: 80- 106 kPa

Package list: 1 x charger

1 x tester
