Urz4045 thermostat 230v stc 1000

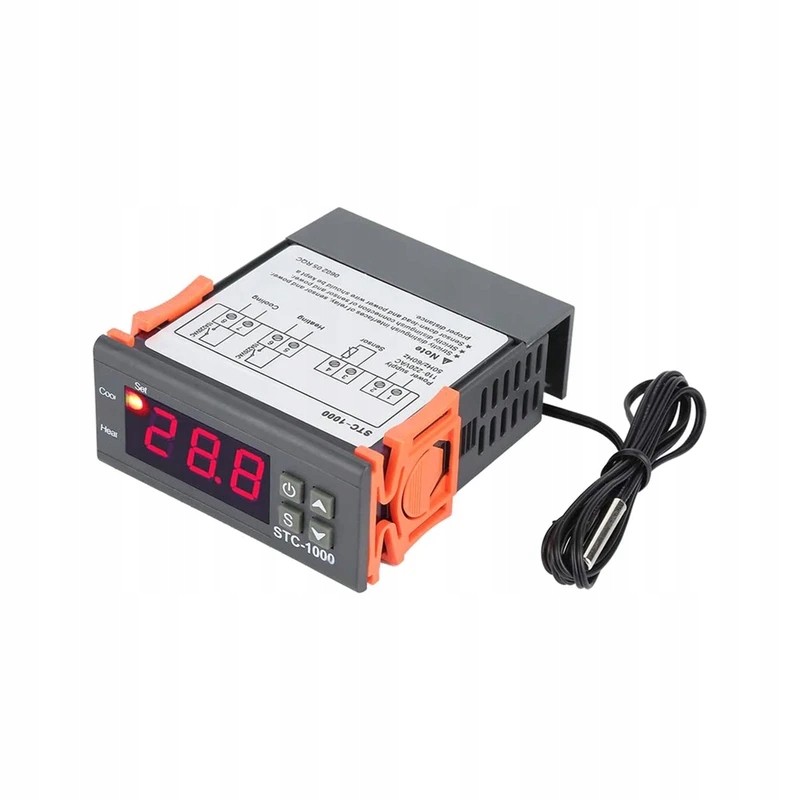

Temperature controller with sensor Model: STC-1000 STC1000 The universal controller is used in the operation of central heating pumps, circulation pumps, fans and many similar devices. Switching between cooling and heating modes Temperature control Temperature calibration External thermostat Main functions: Heating - in this mode, the relay is turned on until the temperature rises to the set value Cooling - in this mode, the relay is turned on until the temperature drops to the set value Temperature control by setting the set value and hysteresis value. Temperature calibration. Compressor operation delay. Large and clear LCD display. Connection diagram on the housing. Minimalist and light design made of top-class components. Wide temperature adjustment range (-50 to 90 degrees C). Automatic alarm when the temperature is exceeded or when a sensor error occurs. Technical parameters and specifications: Temperature measurement range: -50C inches?? 99C Measurement accuracy: ?1C for the range (-50C inches?? 70C) Power supply: 220VAC ?10%, 50/60Hz Sensor: NTC sensor (1 pc) Load capacity of relay contacts: Cooling (10A/250VAC), Heating (10A/250VAC) ) Maximum connection power of contacts: Cooling 2.5kW, Heating 2.5kW Operating temperature: 0C inches?? 60C Permissible humidity: 20% inches?? 85% Measurement resolution: 0.1C Sensor error delay: 1 minute Power consumption: Storage temperature: -30C inches?? 75CProduct dimensions: Front panel: 75 (L) x 34 (W) [mm] Product dimensions: 75 (L) x 34 (W) x 85 (H) [mm] Mounting dimensions: 70 (L) ) x 27 (width) [mm] Sensor cable length: ~1 meter (including the sensor) Included: Thermostat Temperature sensor

PRODUCT SKU: 1024985

VARIATION SKU: W1084525
