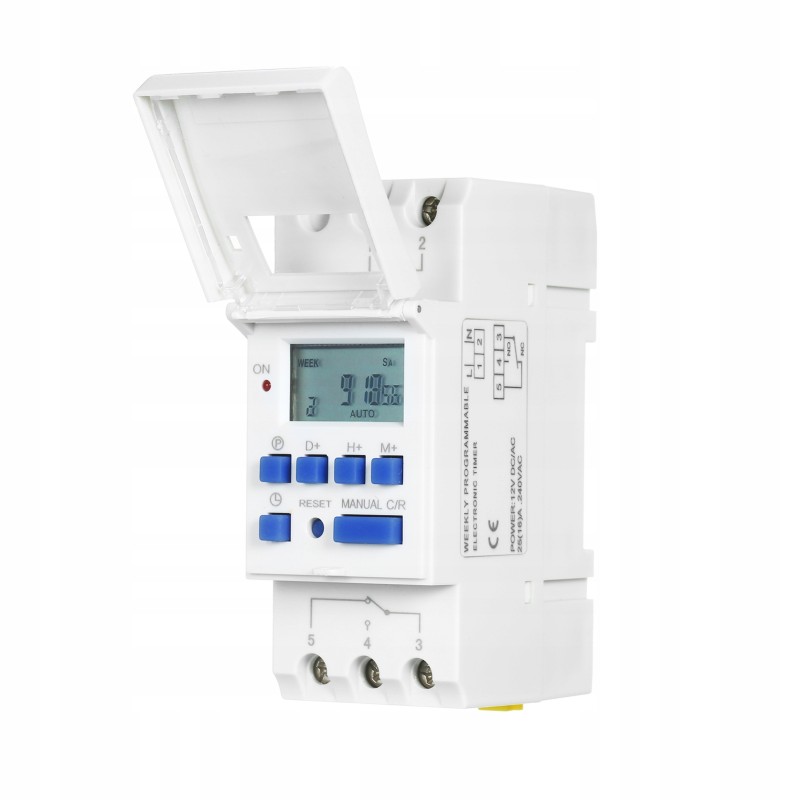

Thc15a digital programmable timer with

The general purpose time switch with digital electronics can repeat programs with 16 on and 16 off settings for various applications for flexible scheduling. Advanced preset the week before. Accurate settings down to the minute. Built-in rechargeable battery and smart chip allow programming settings to be retained even in the event of a power outage.

Features:

7-day programmable digital timer -- General purpose digital timer with daily and weekly programs (10 different modes). Range from 1 min to 168 hours full time. Repeat programs with 16 ON and 16 OFF settings. Accurate settings down to the minute

LCD display displays real time up to hour/minute and ON/AUTO/OFF, large LCD screen for easy reading, you can clearly see every figure on it.

Built-in battery - has a built-in battery 1, 2V/40mA and industrial grade chip, so the device retains programming settings even in the event of a power outage.

Easy Operation - Large screen and clear key button for easy and accurate operation. D (day setting), H (hour setting), M (minute setting).

Wide Application - This timer can automatically turn on/off the electrical equipment according to the user-set time. With high precision and strong anti-interference ability, the timer switch is perfect for controlling street lamps, neon lamps, production equipment, radio and television and many other household appliances.

Specification:

Voltage: 220V/110 V/12V/24V(Optional)

Contact voltage rating: AC 180V-264V 50/60Hz

Number of circuits: 1 switch (SPDT)

Error: ≤2S/day (25℃ )

Turn on/off operation: 16 times turn on and off (manual/automatic)

Power: 4.5 VA (max)

Linked: 1 min-168 hours

Battery backup: ≥15 days

Minimum interval: 1 minute

Load capacity: 16A 250VAC

Mechanical life: 10^7

Electrical life: 10^5

Humidity: 35-85% RH

Operating temperature: -10-55℃

Mounting method: 36mm din rail

Product size: 87 * 64 * 35mm / 3.43 * 2.52 * 1.38 inch

Packing list:

1 * digital sleep timer
