Type K insulated thermocouple measurement amplifier

offer you a module of an isolated measuring amplifier from the American company Dataforth - currently Burr-Brown.

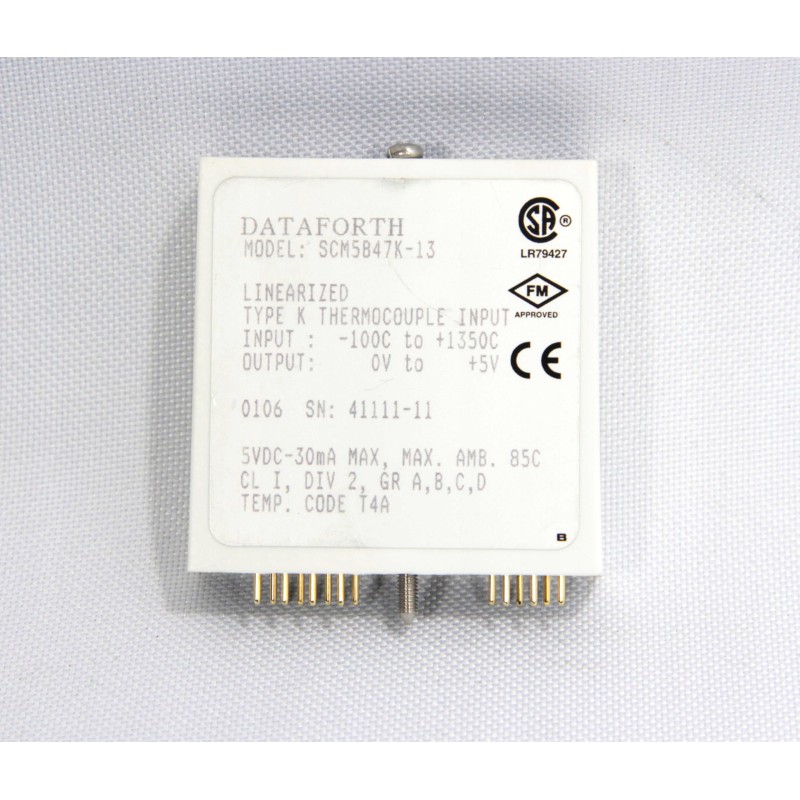

The module is of the CM5B47K-13 type

It is designed to work with K-type thermocouples and has a range from -100° C to 1350° C

NOTE: The device ensures linearization of the thermocouple , accuracy 0.1%.

Max. indication error 1.5° C.

The entire measurement range is converted into voltage from 0V to 5V

The amplifier has a filter ensuring filtration of the input signal and increasing the accuracy of measurements.

The device has an amplifier drift compensation system installed.

The component has the form of a small module with dimensions 56x58x19 mm

It can be mounted in a socket or the leads can be soldered directly to its pins.

All technical data on the scan attached to the auction.

The component is brand new.

We provide a start-up warranty.
