Bside A5 digital multimeter

Newest A5 Smart Digital Multimeter for Effective Operation/Full Features/Easy brought Power Detector Tester, Integrated Smart Identification and Handheld Function which can measure AC/DC Power and AC/DC Current, Resistance, Capacitance, VFC, Temperature, Diode, NCV, V-Alert, Live-wire etc. It is the best choice not only for home users but also for electricians, electronics enthusiasts and home users.

Features:

【Concise Appearance】Compact size, easy to carry out and do not copy the space, take it with you to say goodbye to the standard function and re-enter the size. With silicone leather cover for safer use.

【Digital Display】Digital backlit display with display resolution, with visible font for easy data reading and applicable to various measurements in complemented environment, add improving viewing experience. The results of the 3 results make it very easy to detect power strength.

【Multiple Measurement Functions】Adopts intelligent chip, accurate accuracy and precise measurement. With frequency, frequency, resistance, AC/DC voltage, AC/DC current, diode and temperature measurement, as well as with the addition of VFC, data hold, permanent shutdown, level estimation indicator measurement.

【Intelligent Amplifier Identification】Connect the amplifier port and take measurement, it can automatically turn into AC/DC amps testing mode (no need for digital integration).

【Non-contact power measurement with V alarm】Non-contact power measurement with power alarm. Support for two systems. Built-in high-performance sensors that ensure operational safety when measuring temperature.

【Data Limitation Function】When the measurement is a device, the data displays for a long time, so you can let go of your hands without worrying about eliminating the data.

【Wide Application】Automatic mode selection, which can be widely used in electrical testing, car repair and other home improvement, industrial maintenance etc.

Technical data:

Type: with cloth bag + alligator clip + metal probe

Material: ABS

Battery: 2*1.5V (AAA) battery (not included)

Display: PLN 6,000

Display: 2.2-inch display with backlight

VFC voltage: yes

DC voltage: 0-620V (DC mode) / 0.8-620V (auto mode) 0.01V ±(0.8% + 3)

AC voltage: 0-620V (DC mode) / 0.8-620V (auto mode) 0.01V ±(1.2% + 5), 10-620V (VFC mode) 1V (4.0 % + 3)

Direct current: 1.0-610mA, 0.1mA ±(1.5%+3)

AC current: 1.0-610mA (40-1000Hz), 0.1mA ±(1.5%+3)

Resistance: 0Ω-6MΩ, 0.1Ω ±(1.2% + 3), 6MΩ-60MΩ, 0.1Ω ±(2.0% + 10)

Capacity: 0.5µF-6mF, 0.001µF ±(3.5%+8), 6mF-60.00mF, 0.001µF ±(4.5%+10)

Frequency: 0-9999 Hz (900 mVrms-20 Vrms), 0.001 Hz ± (2.0% + 10)

Temperature: 0-50℃(32-122℉), 1℃/1℉±(1.5%+2), 50-1000℃(122-1832℉), 1℃/1℉±(2.0%) + 3)

V-Alert (non-contact power detection): yes

Diode: Measures diodes in the 3V range Continuity: If the resistance is less than 50 Ω, a beep will sound Live wire inspection: yes

Ambient temperature: 0-50℃±2℃

Package weight: 314 g / 11.07 oz Packing size: 168*95*44mm/6.61*3.74*1.73in

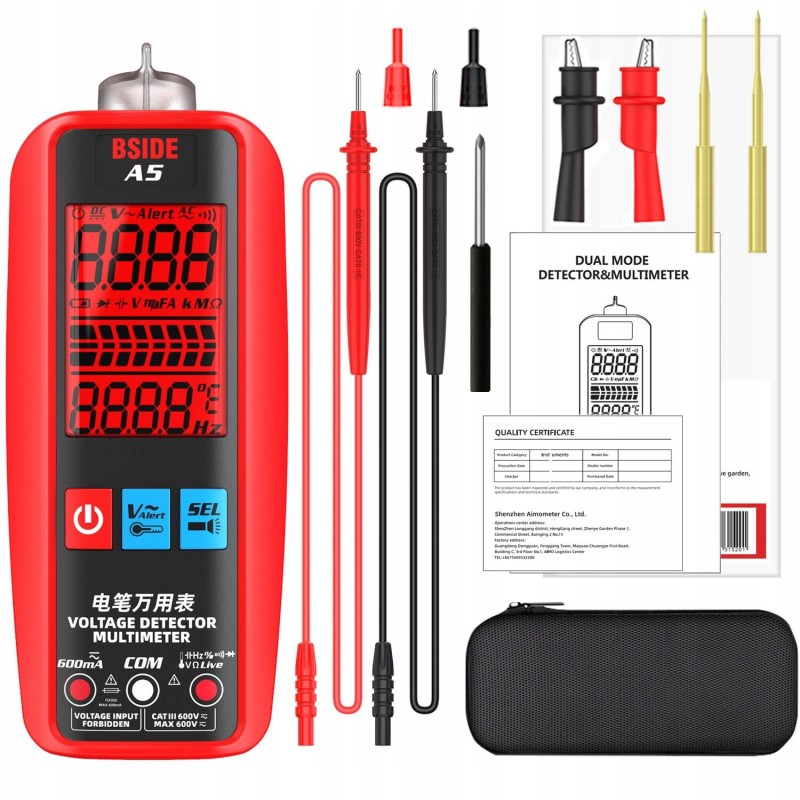

Ingredients list:

1 * Multimeter

1 * Multimeter Pen

1 * Temperature Tester

1*Screwdriver

1 * Alligator Clip

1 * Metal Probe

1*storage bag

1*User Manual(English)
