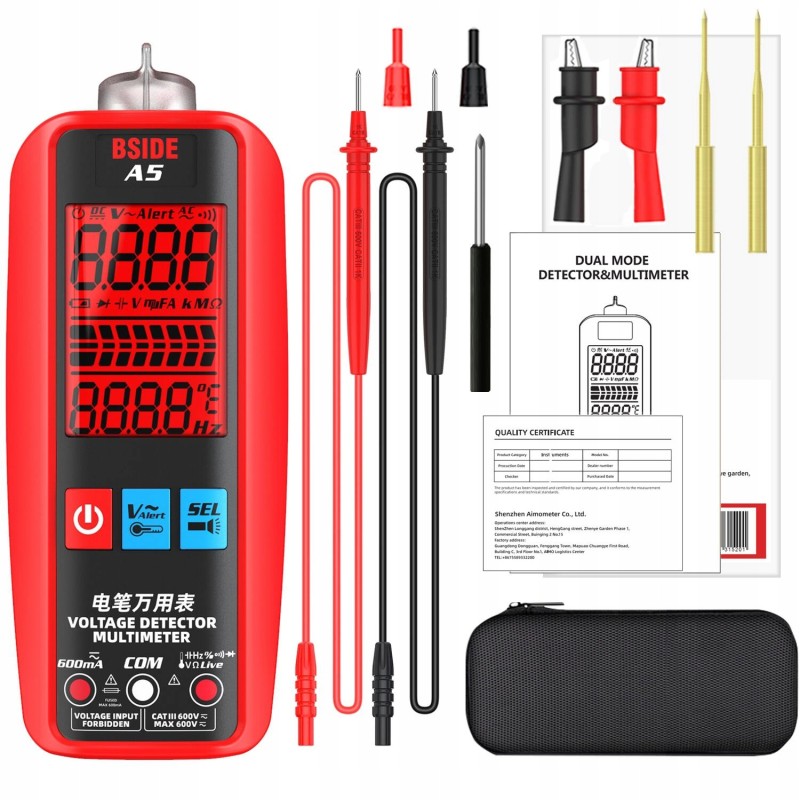

Bside A5 digital multimeter

The newest A5 Smart Digital Multimeter is a reliable performance/full functions/easy to carry voltage detector tester, integrated intelligent identification and handheld function which can measure AC/DC voltage and AC/DC current, resistance, capacitance, VFC, temperature, diode, NCV , V-Alert, Live-wire etc. It is the best choice not only for beginners but also for professional electricians, electronics enthusiasts and home users.

Features:

【Concise Design】Compact size, easy to carry and does not take up space, take it with you to say goodbye to the traditional heavy and difficult to carry size. With silicone leather cover for safer use.

【Digital Display】Digital backlit display with clear resolution, large font for easy data reading and applicable to various measurements in complex environment, greatly improves the reading experience. The display with 3 results makes it very easy to evaluate the detected tension force.

【Multiple Measurement Functions】Adopts intelligent chip, fast identification and accurate measurement. With capacitance, frequency, resistance, AC/DC voltage, AC/DC current, diode and temperature measurement, and with VFC function, data hold, auto power off, low battery indicator function.

【Intelligent Amplifier Identification】Connect the amplifier port and take measurement, it can automatically switch to AC/DC amps testing mode (no need to switch manually).

【Non-contact voltage measurement with V alarm】Non-contact voltage detection with voltage alarm. Dual sensitivity support. Built-in high-sensitivity sensors that ensure operational safety when measuring electricity.

【Data Hold Function】When the measurement is stable, the data will be displayed for a long time, so you can let go of your hands without worrying about eliminating the data.

【Wide Applications】Automatic mode selection, which can be widely used in electrical testing, auto repair and other home improvement, industrial electrical maintenance etc.

Technical data:

Type: with cloth bag + alligator clip + metal probe

Material: ABS

Battery: 2*1.5V (AAA) battery (not included)

Display: 6000 counts

Display: 2.2-inch display with backlight

VFC voltage: yes

DC voltage: 0-620V (DC mode) / 0.8-620V (auto mode) 0.01V ±(0.8% + 3)

AC voltage: 0-620V (DC mode) / 0.8-620V (auto mode) 0.01V ±(1.2% + 5), 10-620V (VFC mode) 1V (4.0 % + 3)

Direct current: 1.0-610mA, 0.1mA ±(1.5%+3)

AC current: 1.0-610mA (40-1000Hz), 0.1mA ±(1.5%+3)

Resistance: 0Ω-6MΩ, 0.1Ω ±(1.2% + 3), 6MΩ-60MΩ, 0.1Ω ±(2.0% + 10)

Capacity: 0.5µF-6mF, 0.001µF ±(3.5%+8), 6mF-60.00mF, 0.001µF ±(4.5%+10)

Frequency: 0-9999 Hz (900 mVrms-20 Vrms), 0.001 Hz ± (2.0% + 10)

Temperature: 0-50℃(32-122℉), 1℃/1℉±(1.5%+2), 50-1000℃(122-1832℉), 1℃/1℉±(2.0%) + 3)

V-Alert (non-contact voltage detection): yes

Diode: Measures diodes in the 3V range Continuity: If the resistance is less than 50 Ω, a beep will sound Live wire inspection: yes

Ambient temperature: 0-50℃±2℃

Package weight: 314 g / 11.07 oz

Packing size: 168*95*44mm/6.61*3.74*1.73in

Package list:

1 * Multimeter

1 * Multimeter Pen

1 * Temperature Tester

1*Screwdriver

1 * Alligator Clip

1 * Metal Probe

1*storage bag

1*User Manual(English)
