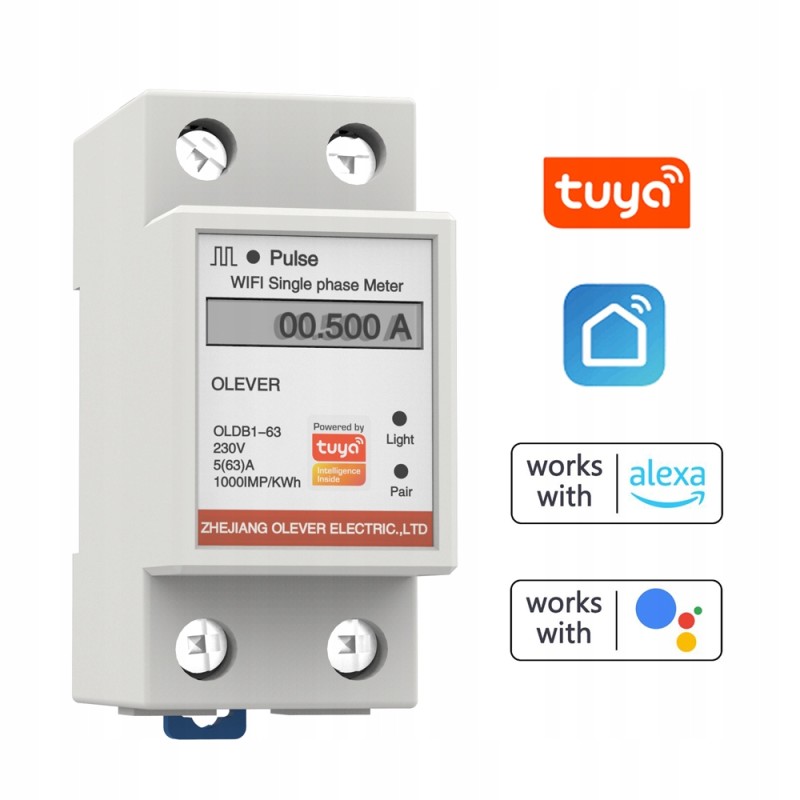

Tuya wifi smart energy meter meter

This Tuya Wi-Fi Energy Harvester Meter incorporates the latest design concepts and manufacturing technology and is characterized by compactness, long service life, modularity, diverse collection and accurate data. It is suitable for AC 50Hz, rated voltage 230V and rated current up to 63A for the functions of voltage collection, current collection, power collection and total energy consumption calculation. Real-time display of electrical parameters and statistical data in the user application interface.

Features:

Clear LCD Display: Voltage, current, active power and electricity consumption will be displayed clearly on the LCD screen, you can read them at any time.

Viewing Remote Controls: After properly connected to the Tuya APP on your mobile phone, you can easily check the data on your mobile phone even if you are far from home.

Preferred Material: This smart meter is made of insulating fireproof material, safer to operate and ensure long service life.

Smart chip: high-quality chip for accurate current measurement, informs you about your home's energy consumption at any time.

The Wi-Fi power harvesting module is 2P design, single-phase power supply mode, and this product should be installed in an environment with protective measures such as waterproof, moisture-proof and sun-proof, such as indoors, waterproof distribution boxes, etc. .

Technical data:

Material: ABS

Rated voltage: AC230V

Rated frequency: 50Hz/60Hz

Maximum current: 63A

Standby power consumption: ≤1W

Number of poles: 2P (single-phase current)

Product size: 81mm × 36mm × 66mm

Operating temperature limit: -40℃ ~ +70℃

Operating humidity limit: ≤80% RH

Wireless standard: WI-FI 2.4 GHz 802.11b/g/n

Packing size: 88 * 72 * 41mm / 3.5 * 2.8 * 1.6in

Package Weight: 160g/5.6oz

Packing list:

1 * Energy Meter
