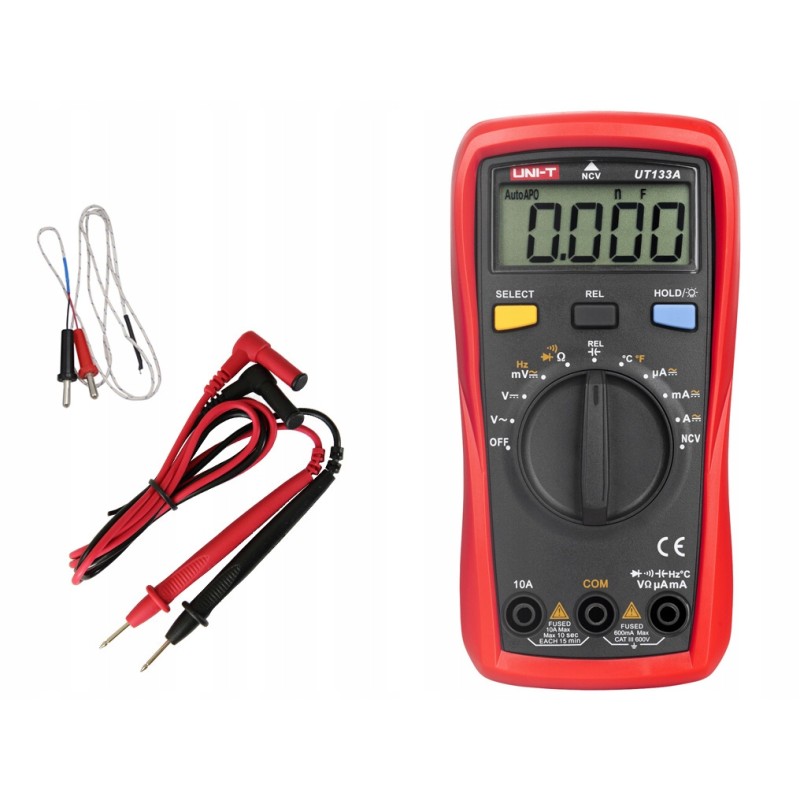

Uni t ut133a universal meter multimeter

THE SUBJECT OF THE SALE IS:

UNIVERSAL METER MULTIMETRUT133 OF THE COMPANY UNI-TMIE0435

TECHNICAL DATA

Measurement

DC voltage: 600 mV / 6000 mV / 60 V / 600 V ±(0.5%+3)

AC voltage: 600 V ±(0, 7%+3)

DC current: 600 µA / 60 mA / 600 mA / 10 A ±(1%+3)

AC current: 10 A ±(1.2%+3)

Resistance: 600 Ohm / 6000 Ohm / 60 kOhm / 600 kOhm / 60 MOhm ±(0.8%+2)

Capacity: 9.999 nF/99.99 nF/999.9 nF/9.999 µF/99.99 µF/999.9 µF/9.999 mF ±(4%+5)

Frequency: 10 Hz ~ 1 MHz

Temperature: -40°C~1000°C ±(1%+4), -40°F~1832°F

Diode test

Continuity check

Power supply: battery 2x 1.5 V battery (R03)

Display size: 56.8 x 36.1 mm

Product dimensions: 155 x 76.5 x 49 mm

Product weight: 255 g

.

Additional functions

Automatic change of measurement ranges

NCV function

Freezing the last reading

Low battery indicator

Maximum reading: 6000

Backlit LCD screen

.

EQUIPMENT

measuring cables, temperature measurement probe, battery, holster,

user manual, warranty card

.

METERS UNI-T

All UNI-T meters are characterized by aesthetic workmanship, strong casing and very good technical parameters.

Intuitive software and universal design provide the user with the ability to adapt the meter to real measurement conditions.

Uni-T meters are high-quality in accordance with global standards products used for measurements in industrial systems and laboratories.

The brand's offer includes innovative devices whose accuracy and extensive functions make them widely used in various measurement systems.

They can be successfully used both in autonomous solutions and in system structures.
