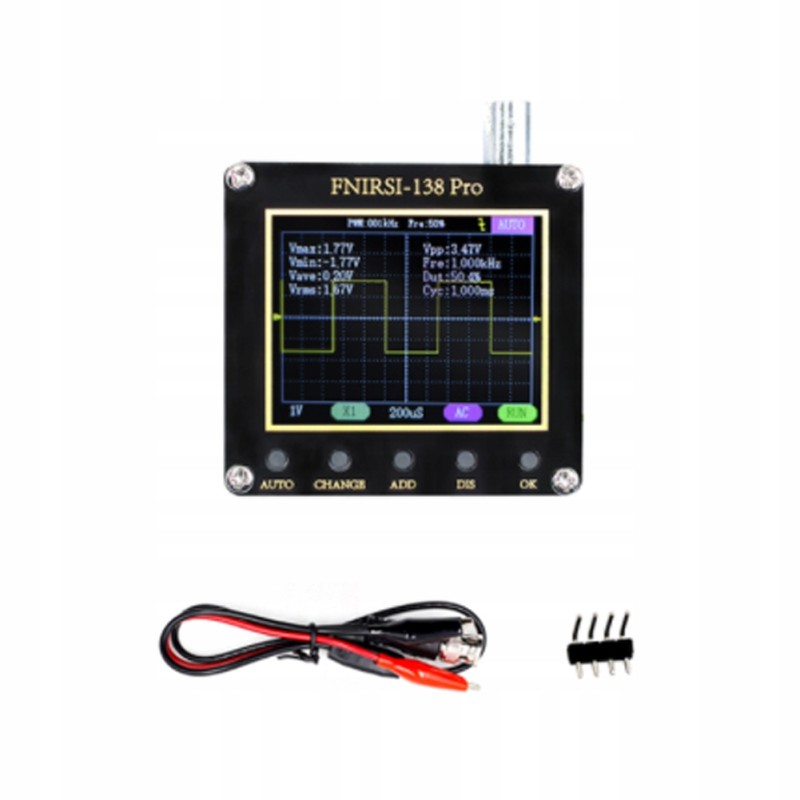

2 4 inch digital oscilloscope fnirsi 138pro

This FNIRSI 138pro portable oscilloscope with small size, the size of this oscilloscope only 65*60*18mm, compared with traditional oscilloscopes, it is more suitable for carrying around. If you are looking for a new oscilloscope, come and try this product, you will not be disappointed.

Features:

Portable oscilloscope: Compared with traditional oscilloscopes, this oscilloscope is smaller in size and more suitable for carrying around.

One Button Auto Adjust: One button AUTO adjusts all the parameters and quick mileage measurement. Long press the AUTO button for quick baseline calibration.

3 trigger modes: single trigger mode for testing unexpected aperiodic signals, auto trigger modes for test period analog signals and normal trigger for testing digital logic signals.

PWM square wave output: this oscilloscope with PWM square wave output function, 0-80 kHz frequency ranges and 0-1000 duty cycle.

Wide applications: This oscilloscope is suitable for car repair, DIY, home appliance maintenance, teaching experiments, etc.

Technical data:

material: PCB

Type: no P6100, no battery

Sampling rate: 2.5 MS/s

bandwidth: 200 KHz

Voltage ranges:

X1: ±40V (Vpp: 80V)

Trigger modes: single, automatic, normal

Coupling mode : AC/DC

PWM output: 3.3V

Frequency: 0-80kHz

Duty cycle: 0-100%

Package size: 65 * 60 * 18mm / 2.6 * 2.4 * 0.8in

Package Weight:162g/5.7oz

Packing List:

1*Oscilloscope
