Measuring test needle p100 b1 1 pin

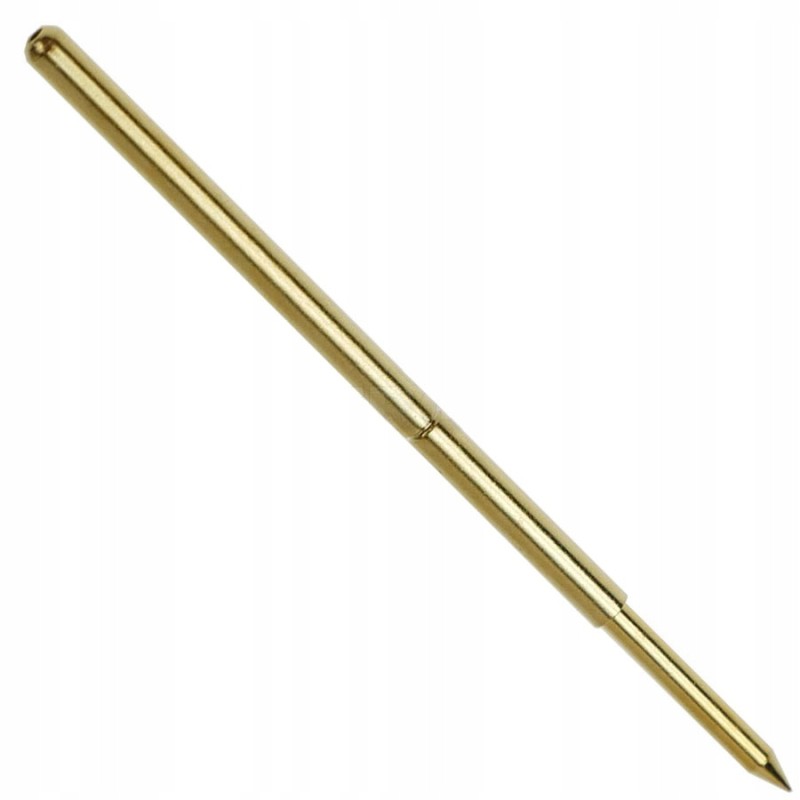

Measuring test needle P100-B1 1 pin Test needle used for checking printed circuits, assembly of SMD and THT electronic components. The test needle ends with a sharp cone. The spring provides appropriate pressure. The test needle is a typical consumable element that naturally wears out. It is used in control systems and is mounted to the measurement probe socket. It is used for conductivity, test stability and durability tests. You can use the needle wherever you cannot solder, repair, program, measure, test, BDM or ECU programmer. technical data:

test - measuring needle

model: P100-B1

full stroke: 6.50 mm

maximum current: 3A

resistance: 50mΩ

spring pressure: 180g

needle diameter: approx. 1.36 mm

handle (housing) diameter: approx. 1.67mm

needle length: approx. 33.35 mm

minimum test distance: approx. 2.54 mm

gold-plated brass housing

the set includes:

test and measuring needle model: P100-B1 x 1 pc.
