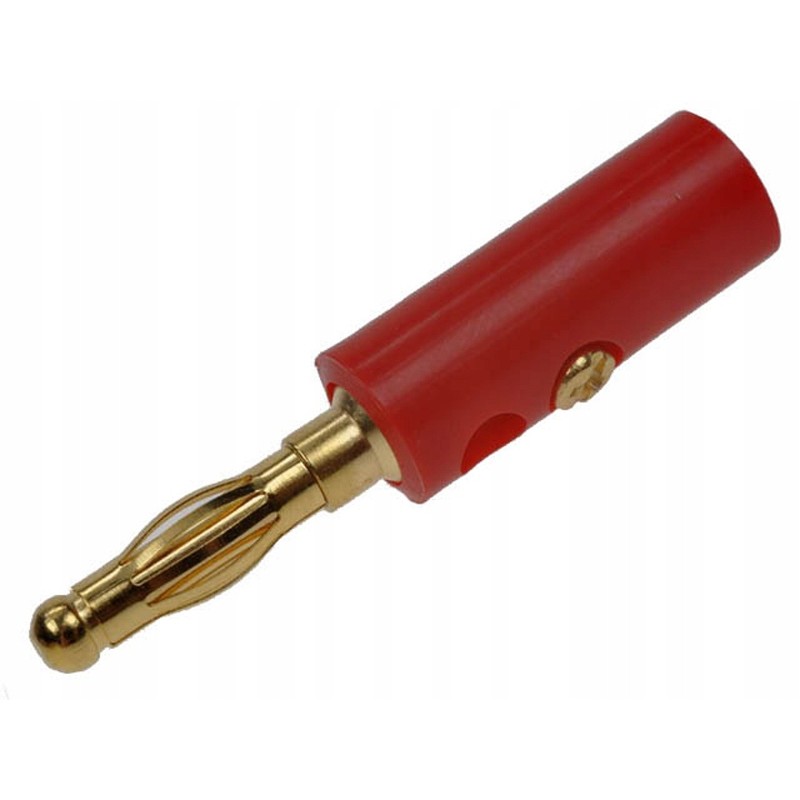

Gold insulated lamellar banana plug WB419 10A RT

Plug, banana insulated lamellar gold Ø4mm axial, WB419/10A (RT), Amass, (254191)

ø4mm banana plug with ø4mm transverse socket for additional connections. Insulating sleeve made of hard plastic. Screwed connection for wires with a cross-section of up to 2.5mm 2 and an external diameter of ø5.8mm.

Specifications

Measuring accessories: Banana plugs ø4mm

Symbol: WB419 (RT)

Producer: Amass

Color: red

Connector version: with transverse socket, socket ø4mm

Cable diameter max.: 5.8 mm

Total length: 41 mm

Contact plating: nickel plated

Operating voltage: <, 60V /30V~

Rated current: max. 10A

Transition resistance: <, 5mΩ

Operating temperature: -20...80°C

Body material: ABS

Installation: on cable

Connection: screw terminal

Standard colors available on other auctions:

SW - black, RT - red, BL - blue, GE - yellow, GN - green
