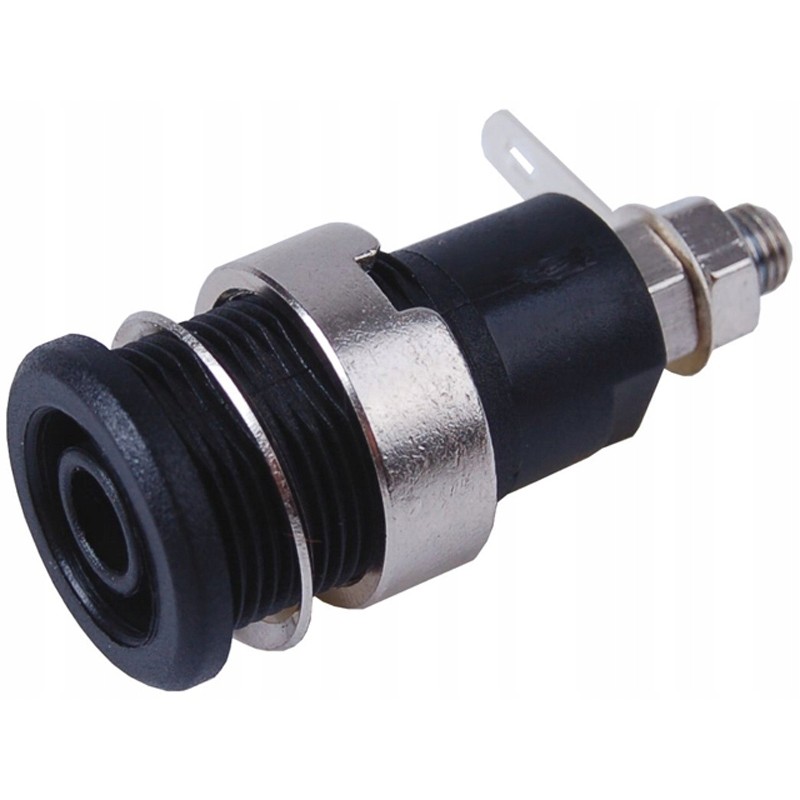

Laboratory safety banana socket 4mm gl60 sw

Socket, safe banana Ø4mm, Mounting: panel, GL60/32A (SW), Amass (243012)

Insulated safe sockets ø4 mm suitable for installation in walls up to 10 mm thick, screwed with an M12×0.75 ring nut. Metal part made of nickel-plated brass. Cable connection: threaded pin with M4 nuts.

Specifications

Measuring accessories: insulated safe socket with a plug diameter of 4mm

Symbol: GL60 (SW)

Producer: Amass

Color: black

Design: screwed with a ring nut M12 x 0.75

Installation: screwed, on panel

Panel thickness: 0.5÷8.0 [mm]

Total length: 33.0 mm

Socket diameter: ø4mm

Height above the panel: 2.5 [mm]

Mounting hole dimensions: ø10.5 [mm]

Header: Wed. 12 x 14.2 [mm]

Connection: M4 threaded pin with 2 x nuts, connector

Operating voltage: IEC 1010 for 1000V Cat III

Rated current max.: 32 A

Transition resistance: <, 5 [mΩ]

Body material: polyacetate

Contact material: bronze, nickel-plated

Temperature range: -20° ÷ +80°C

Features: ø4mm diameter socket suitable for ø4mm banana plugs

Gross weight: 6.26 g.

Standard colors available on other auctions:

SW - black, RT - red, BL - blue, GE - yellow, GN - green, GEN yellow-green
